Switch socket ZI3 without protection (SCHUKO)

Switch socket ZI3 without protection (SCHUKO)

Switch sockets ZI SCHUKO

ZI#-S

Note:
1-phase side socket in installed on the right by default. It is possible to order the side socket on the left. In order to do that, please add "L", e.g. ZI33\X111L-S

The units have modern and ergonomic design. Each unit is fitted with a main socket 16 or 32 A (depending on configuration) and additional 1 or 2 side sockets (1-phase) fitted on the base plate which makes connecting the wires easier.
The sockets are powered via a terminal strip. Switch sockets ZI are compliant with the standard: PN-EN 60439-3, PN-EN 60439-1
New devices are compliant with RoHS Directive 2002/95/EC which means that they do not contain the hazardous substances listed in the Directive.
Rated insulation voltage Ui 500 V
Prąd znamionowy zestawu InA max 32 A
Rated frequency 50-60 Hz
Rated switching voltage Ue 230/400 V
Rated withstand impulse voltage Uimp 6 kV
Wire gauge 2.5...6 mm²
Degree of protection IP44
Protection class II
Weight 0.8...1.2 kg
Gland type M25×1.5 (16 A)
M32×1.5 (32 A)
2P+PE 16A
2P+PE 16A side socket
3P+N+PE 16A
3P+N+PE 32A
3P+PE 16A
3P+PE 32A

Assembly

  • Switch socket ZI3 without protection (SCHUKO) - 33\X111-S

    33\X111-S

  • Switch socket ZI3 without protection (SCHUKO) - 33\X211-S

    33\X211-S

  • Switch socket ZI3 without protection (SCHUKO) - 33\X581-S

    33\X581-S

  • Switch socket ZI3 without protection (SCHUKO) - 34\X111-S

    34\X111-S

  • Switch socket ZI3 without protection (SCHUKO) - 34\X211-S

    34\X211-S

  • Switch socket ZI3 without protection (SCHUKO) - 34\X511-S

    34\X511-S

  • Switch socket ZI3 without protection (SCHUKO) - 35\X341-S

    35\X341-S

  • Switch socket ZI3 without protection (SCHUKO) - 35\X342-S

    35\X342-S

  • Switch socket ZI3 without protection (SCHUKO) - 35\X441-S

    35\X441-S

  • Switch socket ZI3 without protection (SCHUKO) - 35\X442-S

    35\X442-S

3D model

Dimensions

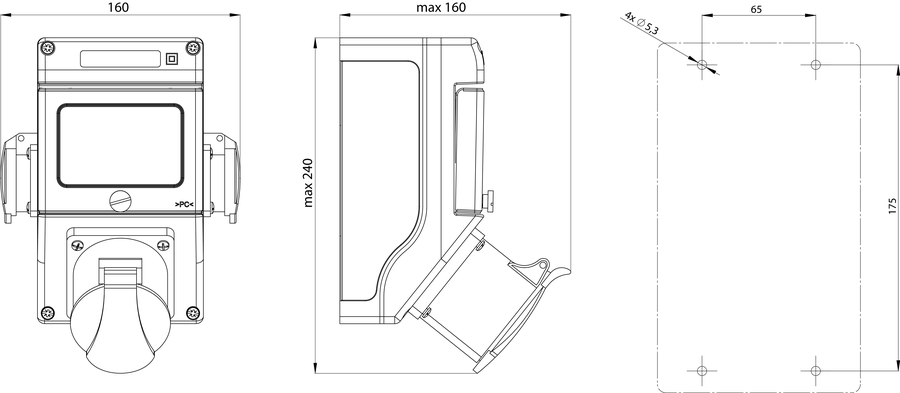

  • Switch socket ZI3 without protection (SCHUKO) - Dimensions
