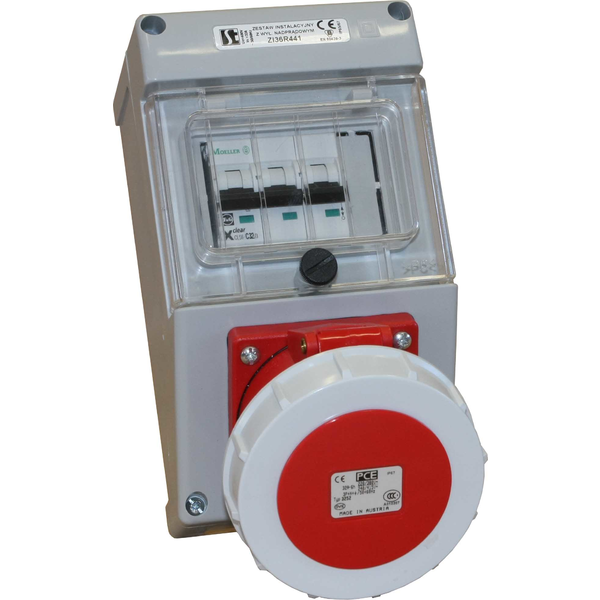

Switch socket ZI3 with miniature circuit breaker

Switch socket ZI3 with miniature circuit breaker

Switch sockets ZI

ZI#

Note:
1-phase side socket in installed on the right by default. It is possible to order the side socket on the left. In order to do that, please add "L", e.g. ZI33R111L

The units have modern and ergonomic design. Each unit is fitted with a main socket 16 or 32 A (depending on configuration) and additional 1 or 2 side sockets (1-phase) fitted on the base plate which makes connecting the wires easier.
The complete device has protection level IP44 or IP65/IP67 (without side socket). The sockets are powered via an overcurrent circuit breaker. Switch sockets ZI are compliant with the standard: PN-EN 60439-3, PN-EN 60439-1
New devices are compliant with RoHS Directive 2002/95/EC which means that they do not contain the hazardous substances listed in the Directive.
Rated insulation voltage Ui 500 V
Prąd znamionowy zestawu InA max 32 A
Rated frequency 50-60 Hz
Rated switching voltage Ue 230/400 V
Rated withstand impulse voltage Uimp 6 kV
Wire gauge 2.5...6 mm²
Degree of protection IP44; IP65/IP67
Protection class II
Weight 0.8...1.2 kg
Gland type M25×1.5 (16 A)
M32×1.5 (32 A)
1-phase overcurrent circuit breaker 16A/B
2P+PE 16A
2P+PE 16A side socket
3-phase overcurrent circuit breaker 16 A/C
3-phase overcurrent circuit breaker 32 A/C
3P+N+PE 16A
3P+N+PE 32A
3P+PE 16A
3P+PE 32A

Assembly

  • Switch socket ZI3 with miniature circuit breaker - 32\R111

    32\R111

  • Switch socket ZI3 with miniature circuit breaker - 36\R111

    36\R111

  • Switch socket ZI3 with miniature circuit breaker - 32\R211

    32\R211

  • Switch socket ZI3 with miniature circuit breaker - 36\R211

    36\R211

  • Switch socket ZI3 with miniature circuit breaker - 32\R571

    32\R571

  • Switch socket ZI3 with miniature circuit breaker - 36\R571

    36\R571

  • Switch socket ZI3 with miniature circuit breaker - 33\R111

    33\R111

  • Switch socket ZI3 with miniature circuit breaker - 33\R211

    33\R211

  • Switch socket ZI3 with miniature circuit breaker - 33\R581

    33\R581

  • Switch socket ZI3 with miniature circuit breaker - 34\R111

    34\R111

  • Switch socket ZI3 with miniature circuit breaker - 34\R211

    34\R211

  • Switch socket ZI3 with miniature circuit breaker - 34\R511

    34\R511

  • Switch socket ZI3 with miniature circuit breaker - 32\R341

    32\R341

  • Switch socket ZI3 with miniature circuit breaker - 36\R341

    36\R341

  • Switch socket ZI3 with miniature circuit breaker - 32\R441

    32\R441

  • Switch socket ZI3 with miniature circuit breaker - 36\R441

    36\R441

  • Switch socket ZI3 with miniature circuit breaker - 35\R341

    35\R341

  • Switch socket ZI3 with miniature circuit breaker - 35\R342

    35\R342

  • Switch socket ZI3 with miniature circuit breaker - 35\R441

    35\R441

  • Switch socket ZI3 with miniature circuit breaker - 35\R442

    35\R442

3D model

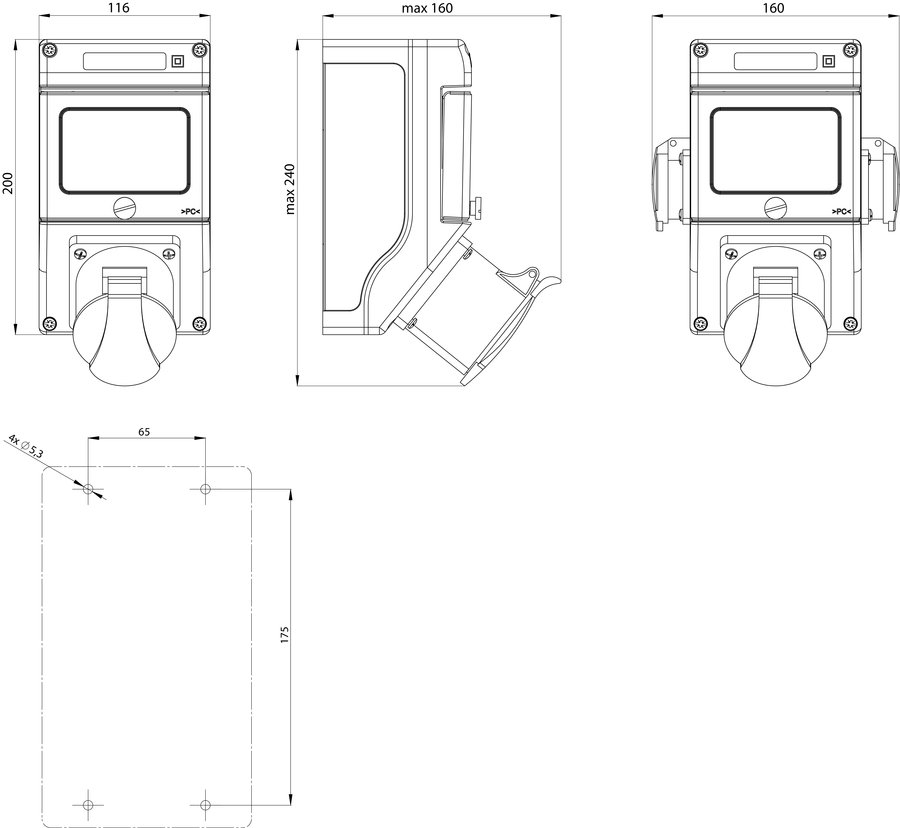

Dimensions

  • Switch socket ZI3 with miniature circuit breaker - Dimensions

Download
