Switch socket ZI with disconnector 0-I (SCHUKO)

Switch socket ZI with disconnector 0-I (SCHUKO)

Switch sockets ZI SCHUKO

ZI#-S

In assemblies: ZI05R\341-S, ZI05\R342-S, ZI05\R441-S, ZI05\R442-S the side socket is protected with a fuse-link WTA 10A/250V 1500 A AC.
Assemblies ZI01 are fitted with a rubber gland, other assemblies: metric gland

There is a variety of configurations regarding the type and current rating of sockets. Switch sockets ZI with main socket 16A are fitted with a cam switch ŁK16R in function of a disconnector 0-I. Units with main socket 32A are fitted with a cam switch ŁK32R. Switch sockets ZI are compliant with the standard: PN-EN 60439-3, PN-EN 60439-1.
Rated insulation voltage Ui 500 V
Prąd znamionowy zestawu InA max 32 A
Rated frequency 50-60 Hz
Rated switching voltage Ue 230/400 V
Rated withstand impulse voltage Uimp 6 kV
Wire gauge 2.5...4 mm²
Degree of protection IP44
Protection class II
Gland type M25×1.5
2P+PE 16A
2P+PE 16A side socket
2P+PE 16A side socket fuse link protection WTA 10A/250V
3P+N+PE 16A
3P+N+PE 32A
3P+PE 16A
3P+PE 32A
Switch 0-I

Assembly

  • Switch socket ZI with disconnector 0-I (SCHUKO) - 03\R111-S

    03\R111-S

  • Switch socket ZI with disconnector 0-I (SCHUKO) - 03\R211-S

    03\R211-S

  • Switch socket ZI with disconnector 0-I (SCHUKO) - 03\R581-S

    03\R581-S

  • Switch socket ZI with disconnector 0-I (SCHUKO) - 04\R111-S

    04\R111-S

  • Switch socket ZI with disconnector 0-I (SCHUKO) - 04\R211-S

    04\R211-S

  • Switch socket ZI with disconnector 0-I (SCHUKO) - 04\R511-S

    04\R511-S

  • Switch socket ZI with disconnector 0-I (SCHUKO) - 05\R341-S

    05\R341-S

  • Switch socket ZI with disconnector 0-I (SCHUKO) - 05\R342-S

    05\R342-S

  • Switch socket ZI with disconnector 0-I (SCHUKO) - 05\R441-S

    05\R441-S

  • Switch socket ZI with disconnector 0-I (SCHUKO) - 05\R442-S

    05\R442-S

3D model

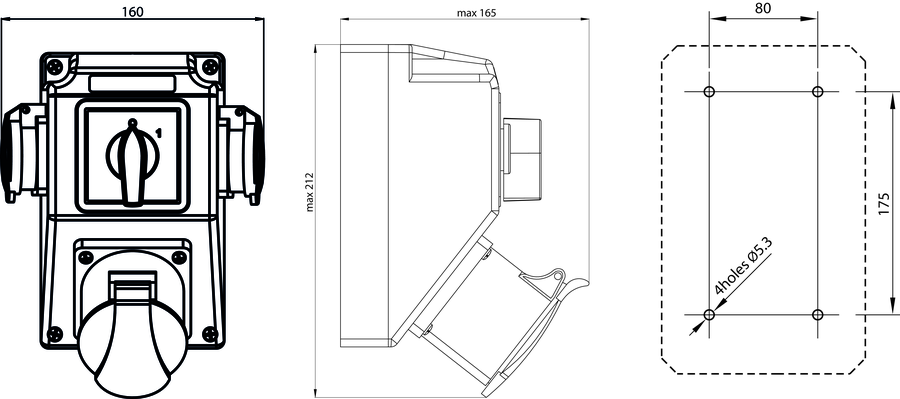

Dimensions

  • Switch socket ZI with disconnector 0-I (SCHUKO) - Dimensions
