Switch receptacles ZO

ZO#
Switch receptacles ZO are used for loading, unloading and reversing the rotation of connected devices. The unit is powered via a socket with protection level IP44. Switch receptacles ZO are compliant with the standard: PN-EN 60439-3, PN-EN 60439-1.
Rated insulation voltage Ui 500 V
Prąd znamionowy zestawu InA max 32 A
Rated frequency 50-60 Hz
Rated switching voltage Ue 230/400 V
Rated withstand impulse voltage Uimp 6 kV
Wire gauge 2.5...4 mm²
Degree of protection IP44
Protection class II
Gland type M25×1.5
3P+N+PE 16A
3P+N+PE 32A
3P+PE 16A
3P+PE 32A
Switch 0-I
Switch L-0-P

Assembly

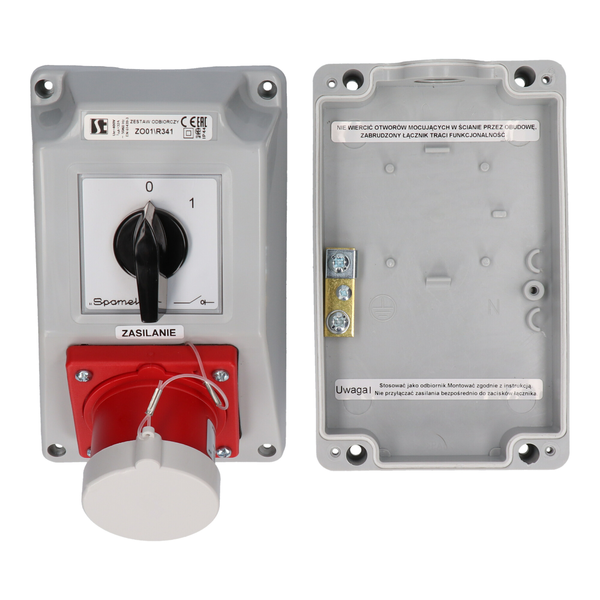

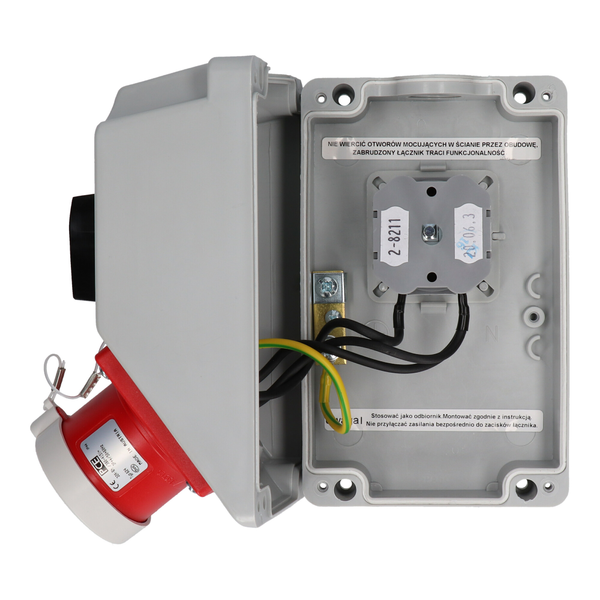

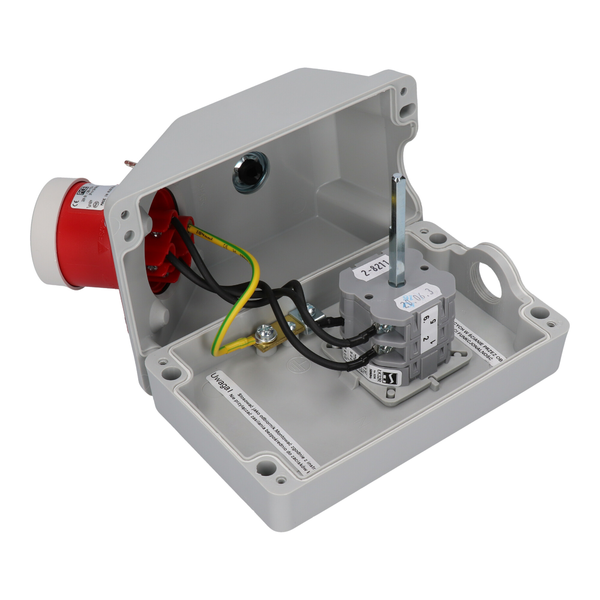

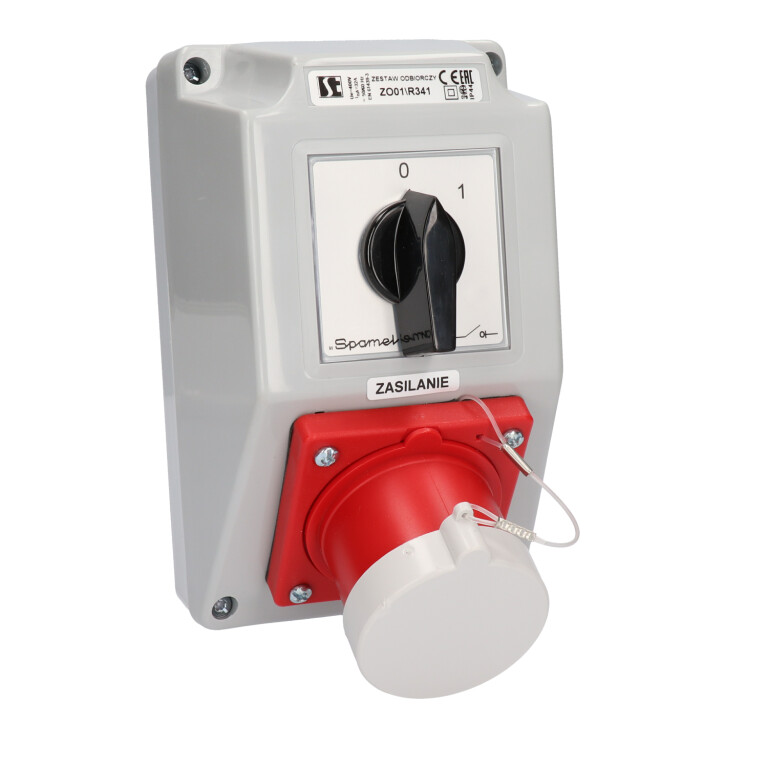

  • Switch receptacle ZO - 01\R341

    01\R341

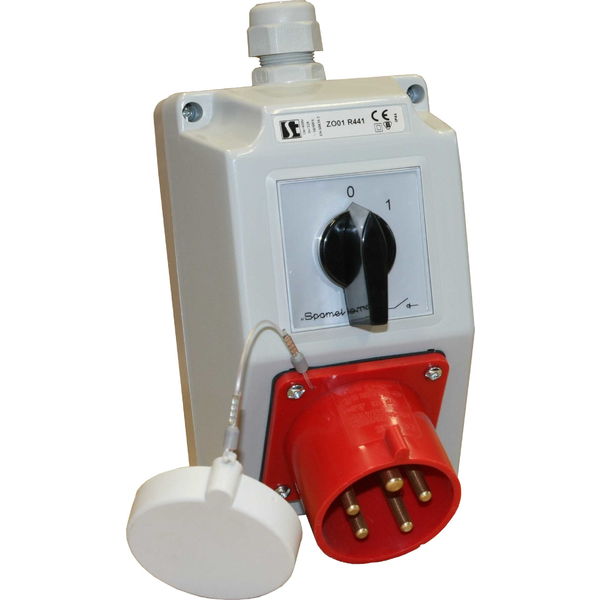

  • Switch receptacle ZO - 01\R441

    01\R441

  • Switch receptacle ZO - 01\R361

    01\R361

  • Switch receptacle ZO - 01\R461

    01\R461

  • Switch receptacle ZO - 02\R111

    02\R111

  • Switch receptacle ZO - 02\R211

    02\R211

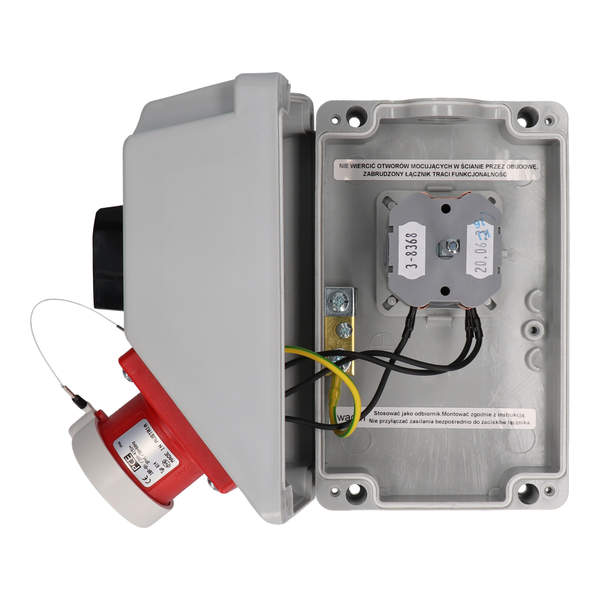

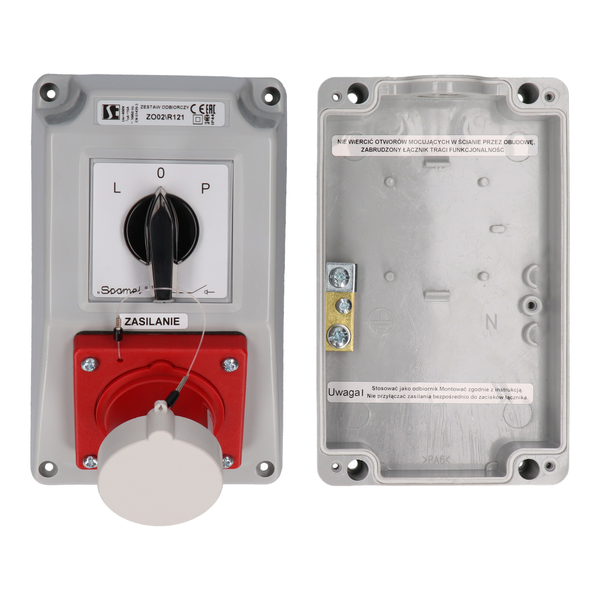

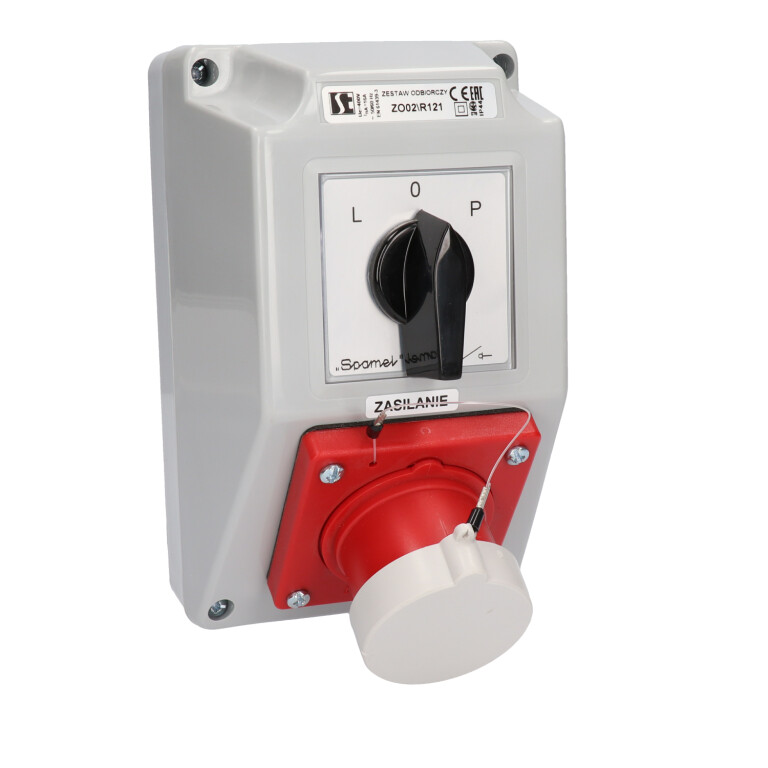

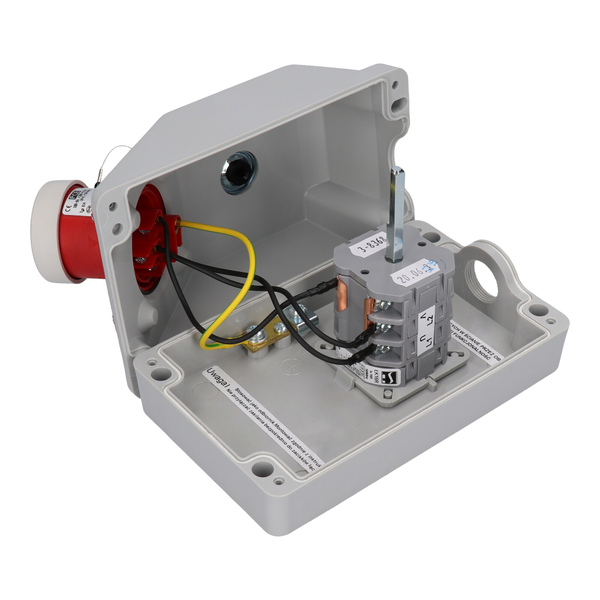

  • Switch receptacle ZO - 02\R121

    02\R121

  • Switch receptacle ZO - 02\R221

    02\R221

3D model

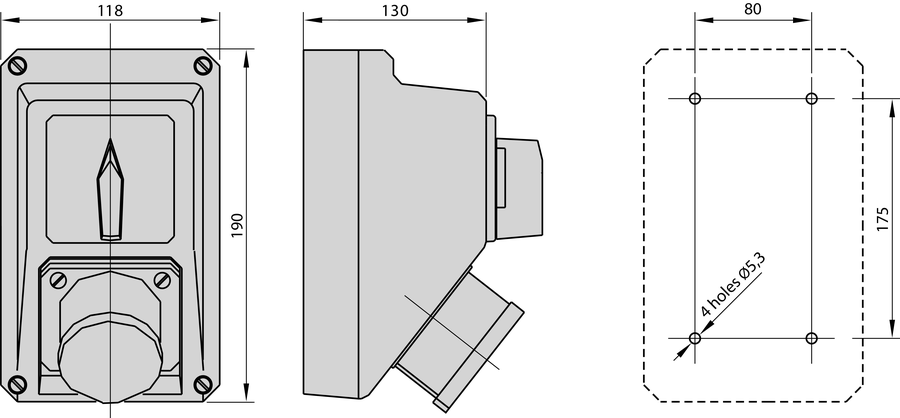

Dimensions

  • Switch receptacle ZO - Dimensions
