Motor starter RZ01/RZ02

Motor starter RZ01/RZ02

Motor starters RZ

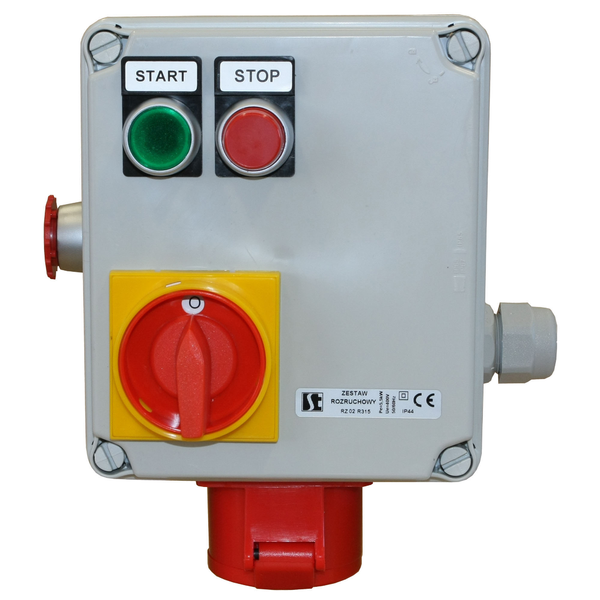

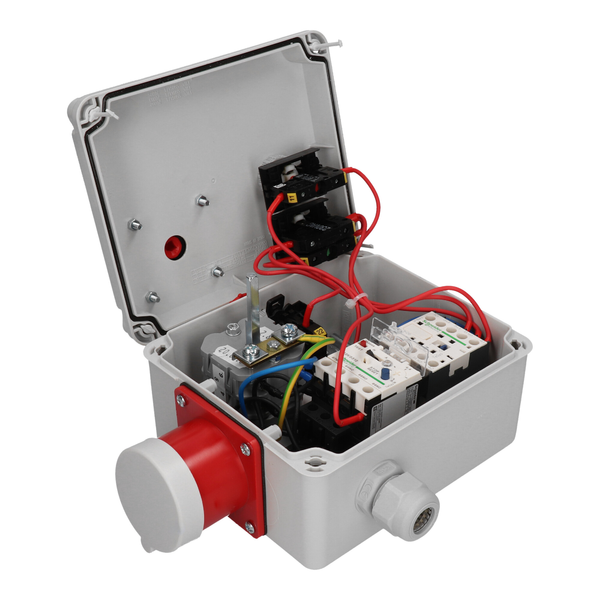

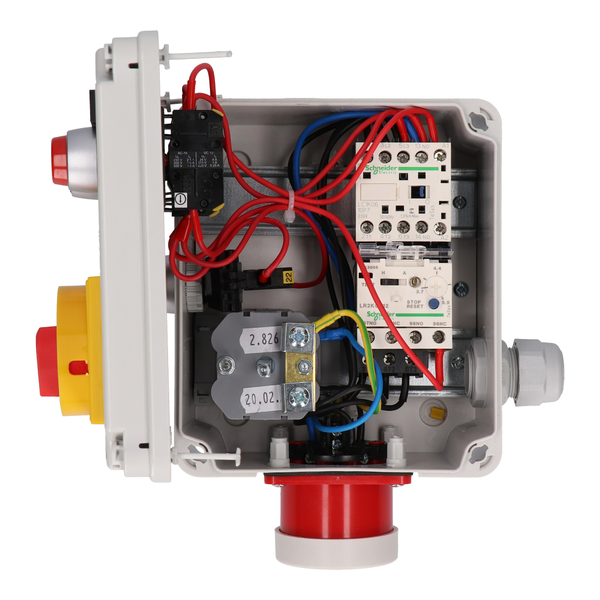

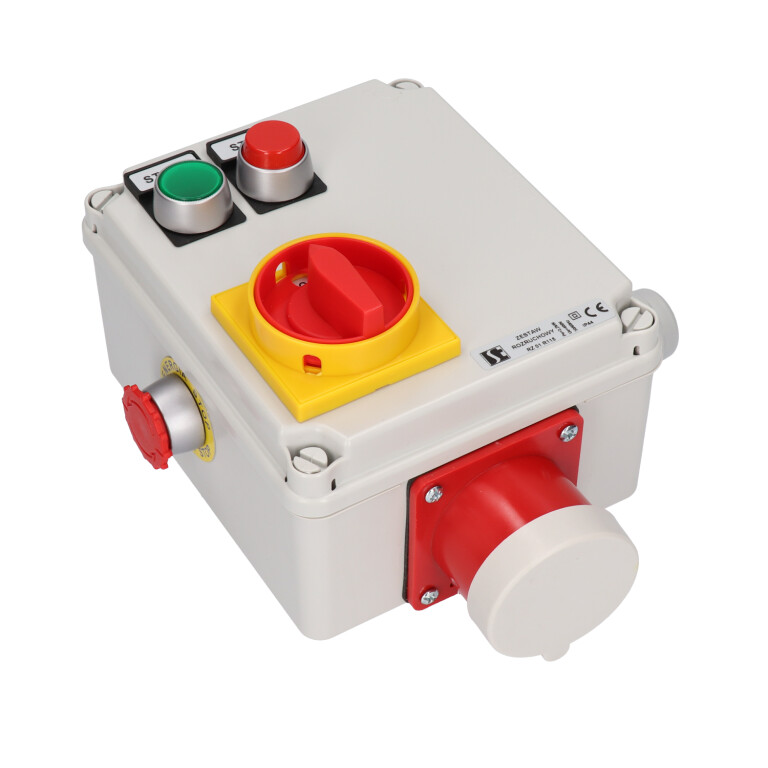

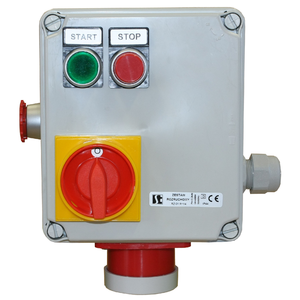

This protecting and starting switch socket is mainly intended for non-industry customers to install 3-phase motors. Apart from thermal protection, the device is sensitive to phase failures. Damages caused by voltage unbalancing are quire common and the repair costs may be very high. The unit is fitted with On/Off pushbuttons and an easy accessible emergency button what conforms to new safety regulations. In case the unit controls more than one workstation, additional emergency pushbuttons can be fitted.
Use 4-pole plugs and sockets in TNC wiring.
Thermal ranges of standard assemblies are given in Ordering code . In individual orders use the thermal relays as shown in the table Types of thermal relays.
Motor starters are compliant with the standard: PN-EN 60439-1.
Rated insulation voltage Ui 500 V
Rated continuous current Iu max 14/18 A
Rated frequency 50-60 Hz
Rated switching voltage Ue 230/400 V
Rated withstand impulse voltage Uimp 6 kV
Wire gauge 2.5...4 mm²
Degree of protection IP44
Protection class II

3D model

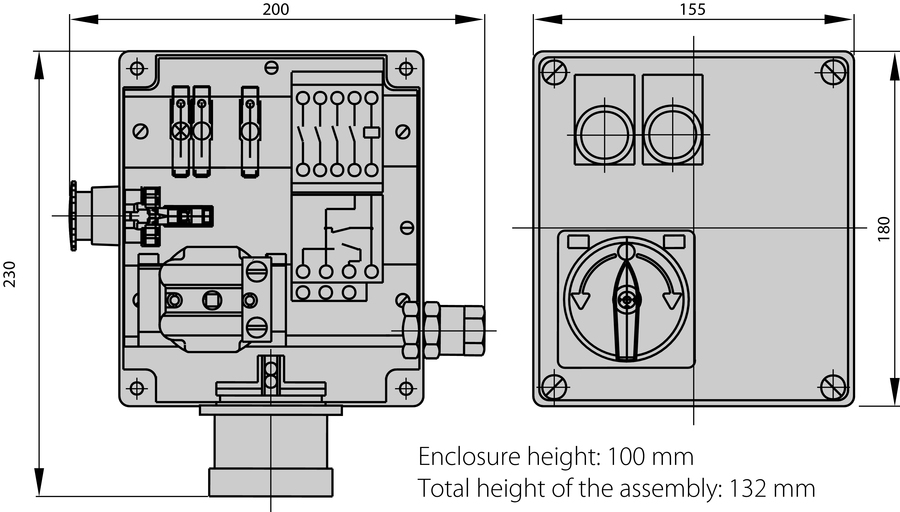

  • Motor starter RZ01/RZ02 - Dimensions
