Foot switch FS\602

Foot switch FS\602

Foot switches

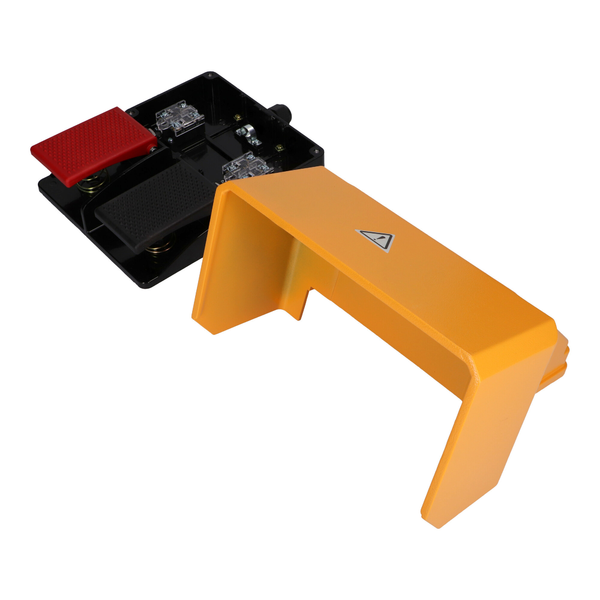

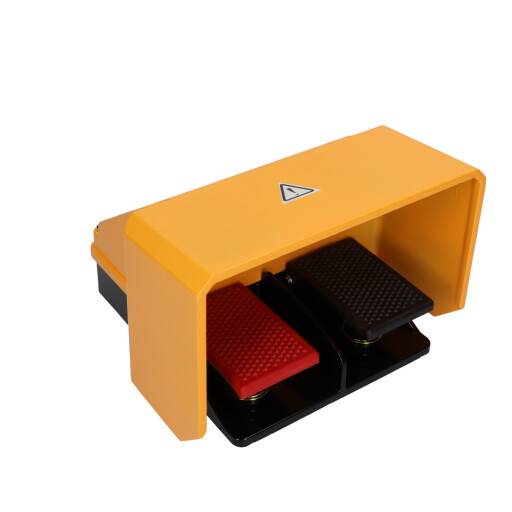

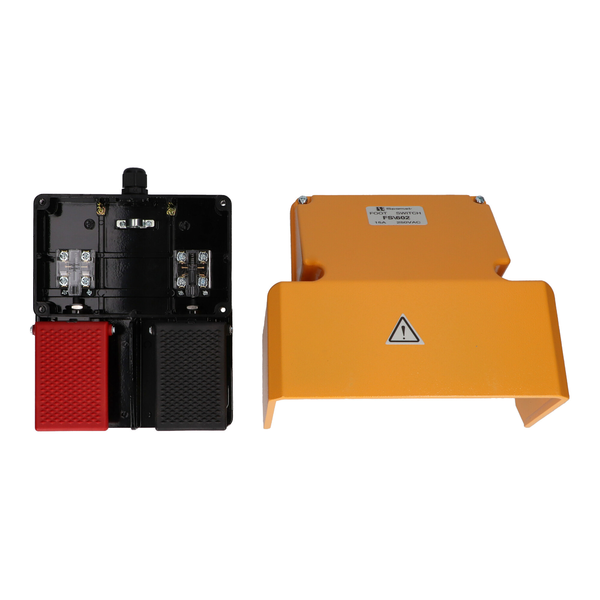

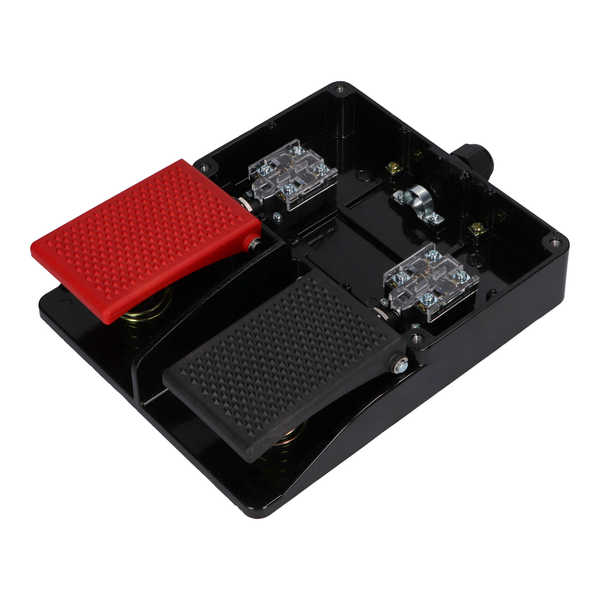

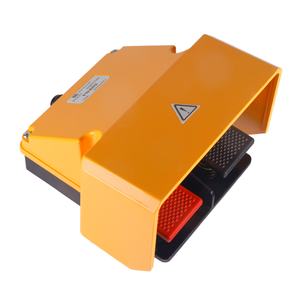

Foot switches are used to control the operation of production machines. They are perfect wherever manual control is impossible or inconvenient. They are used to start and stop the work of machines or the production process. Foot switch FS\602 has a yellow aluminum cover that protects against direct access to the lever. The switch lever is mounted under the aluminum cover, which makes it possible to place your foot in between. This design prevents accidental starting of the machine. The switch has two levers (black and red) 2 NO and NC contacts (2NO/2NC) 15A.
Rated insulation voltage Ui 250V
Rated continuous current Ith 15A
Ambient temperature -10 ... +80°C
Live 20.000.000 connections/min
Electrical endurance 500.000 connections/min
Degree of protection IP65

3D model

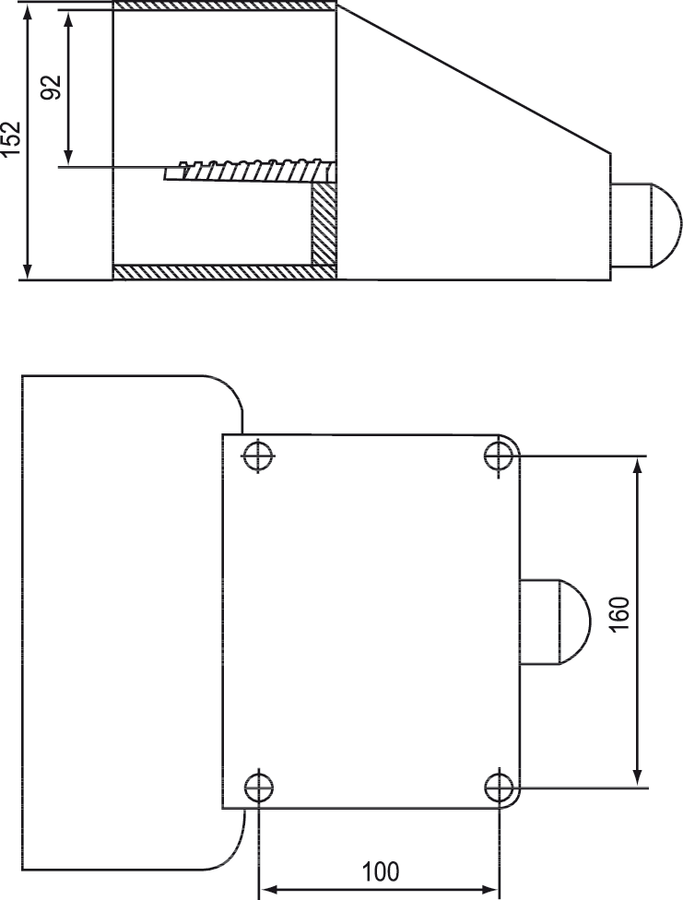

  • Foot switch FS\602 - Dimensions
