Position indicator PK22-WP
Indicators
PK22-WP\#
EAN:

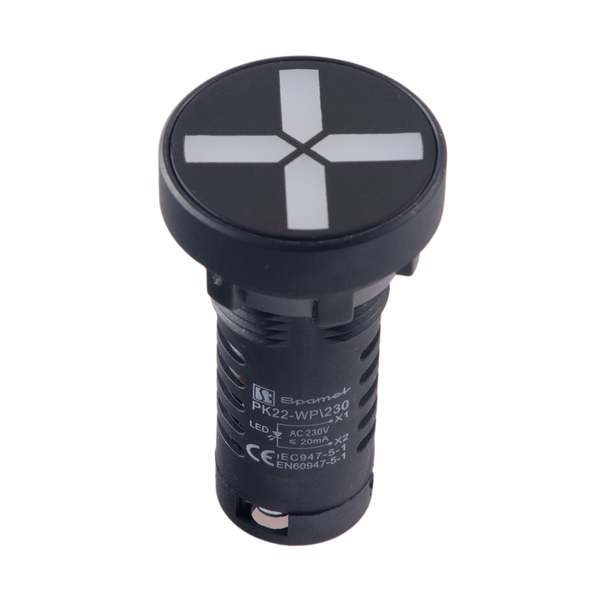

The position indicator is used to identify the position or linear displacement of an element belonging to the controlled device. It is used, among others, in synoptic boards of switching stations. The device enables the visualization and duplication of the states of circuit breakers, disconnectors or isolating switches. Provides precise and quick information on the state of the circuit breaker. It is characterized by small dimensions, the state of the switch is illustrated by LEDs that form the shape of two perpendicular beams.
The indicators glow in two colors: red or green.
Power supply is connected as follows:
X0 - common terminal (ground)
X1 - red color (voltage)
X2 - Green color (voltage)

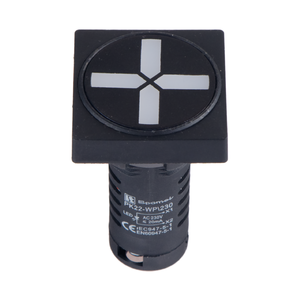

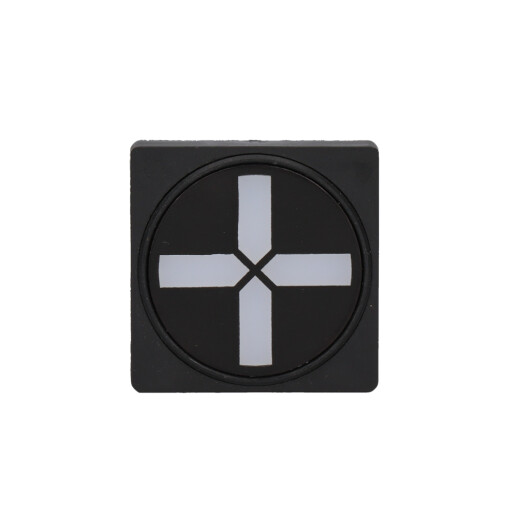

The indicators are designed for mounting in an opening with a diameter of 22mm. The set includes a square version of the indicator. To mount the round indicator in the opening, unscrew the nut and remove the square indicator cap.
The indicators glow in two colors: red or green.
Power supply is connected as follows:
X0 - common terminal (ground)
X1 - red color (voltage)
X2 - Green color (voltage)
The indicators are designed for mounting in an opening with a diameter of 22mm. The set includes a square version of the indicator. To mount the round indicator in the opening, unscrew the nut and remove the square indicator cap.
| Rated insulation voltage Ui | 250V |
| Rated voltage Ue | 24 AC/DC; 230 AC/DC |
| Source of light | LED |
| Maximum desktop thickness | 9 mm |
| Protection level, under the panel | IP20 |
| Wire gauge | 0.5 ... 1.5 mm² |
| Ambient temperature | -25 ... +70°C |
| Degree of protection | IP54 |
