LK\166 Limit switch, spring lever with a roll (plastic end)

LK\166 Limit switch, spring lever with a roll (plastic end)

LK 100 Limit switches

LK\166

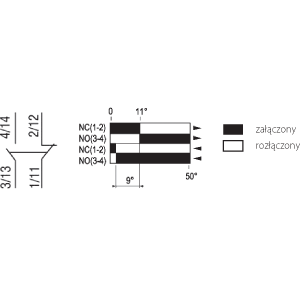

Double circuit limit switch
Resistant design, made of rigid plastic and aluminium cast (head and the cover make a uniform shape)
Compact sizes, oil- and waterproof. Built-in switch with a double spring mechanism
Longer mechanical life. Smooth action, longer service life
Easy-to-wire circuit opening design
Wide variety of actuators, easy use
Compliance with the standard IEC 60947-5-1
EN 60947-5-1
UL508
CSAC22-2Nº 14
IEC 60204-1 (components)
EN 60204-1 (components)
Ambient temperature -25 ... +70°C (work)
-40 ... +70°C (storage)
Vibration test (acc. to IEC 60068-2-6) 55 Hz, 1.5 mm double amplitude
Shock test (acc. to IEC 60068-2-27) 30g
18 ms in any position
Degree of protection IP 65, compliant with IEC60529
Mechanical endurance 15 mln (cycles)
Rated insulation voltage Ui 500 V, class of pollution 3, compliant with IEC 60947-1
300V, compliant with UL508, CSA C22-2n° 14
Wire gauge maks. 2.5 mm² (terminals)
Inductive load AC15, B300 (Ue=240V, Ie=1.5A)
DC-13, R300 (Ue=250V, Ie=0.1A)
Resistive load 250V, 5A
Frequency of switching 120 cycles/min
Insulation resistance >100 MΩ. 500 V
Contact resistance <25 MΩ, 5 V, 5 mA, after 10 m cycles
Electrical endurance 1 m cycles, AC-15 (Ue=240 V, Ie = 1,5 A)
Contact insulation Za
Gland rubber, max Ø 6...9 mm

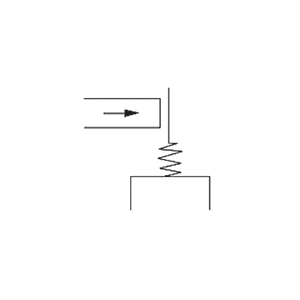

Triggering any moving part
Max. triggering speed 1.3 m/s
Max. triggering force 150 g

3D model

Dimensions

  • LK\166 Limit switch, spring lever with a roll (plastic end) - Dimensions
