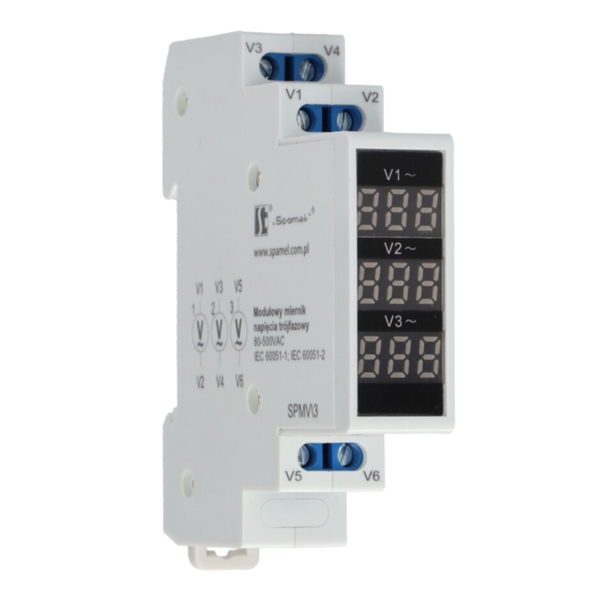

Modular three-phase voltage meter SPMV\3

Modular three-phase voltage meter SPMV\3

Modular voltage meters

The modular meter is used to measure the voltage of a three-phase grid. The value is indicated by a digital indicator (a separate display for each phase) that shows the current voltage value. The LED display enables the visualization of the measured values ​​and allows the user to quickly read the current values ​​graphically in real time. The meter is mounted on a standard TS35 rail. This device is ideal for all branches of industry as well as for use in home switchboards. It is especially useful wherever a quick measurement of the current values ​​of the mains voltage is required. Measuring range (80-500VAC). Protect the meter with e.g. a 1A fuse.
Display color red
Measured voltage AC 80V - 500V
Rated frequency 50-60 Hz
Power consumption ≤20mA
Electrical endurance ≥15.000 h
Degree of protection IP20
Ambient temperature -5°C ... +40°C (day average ≤35°C)
Storage temperature -25°C ... +70°C
Humidity 10-80% (non-condensing)
Wire gauge 1.5 mm²
Rail mounting TS35
Dokładność pomiaru / tolerancja wskazań ±1,1%

3D model


  • Modular three-phase voltage meter SPMV\3 - Dimensions
