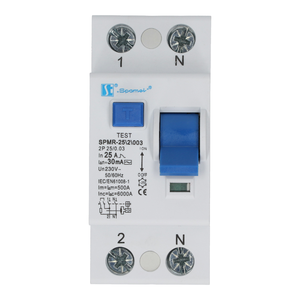

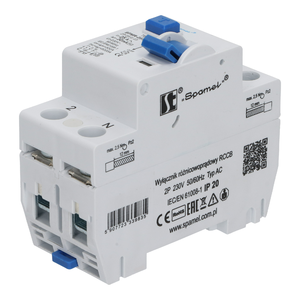

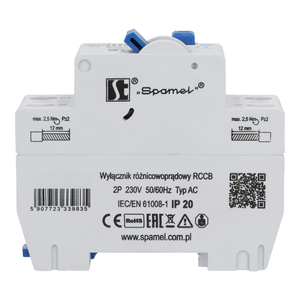

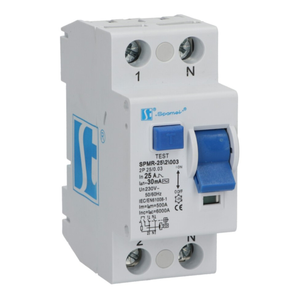

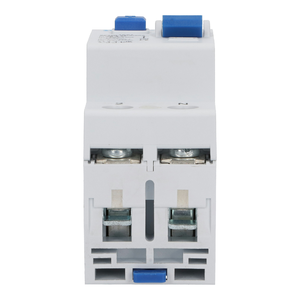

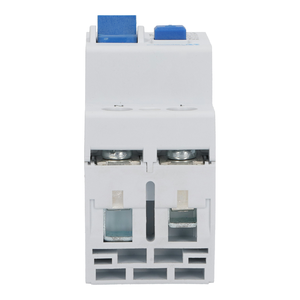

SPMR residual current circuit breakers
SPMR residual current circuit breakers
SPMR-##\#
EAN:
Czułość: (brak) - typ AC; A - typ A
SPMR series residual current devices are electrical safety devices that protect people from electric shock and prevent fires. They work by detecting the difference between the current entering and leaving the circuit, disconnecting the power supply if an abnormality is detected.
Electric shock protection:
The main task of residual current devices is to protect people from electric shock, both in the case of direct contact (e.g., touching a live wire) and indirect contact (e.g., touching the housing of a damaged device).
Fire protection:
Residual current devices help prevent fires that can be caused by short circuits or damage to the electrical system by responding to leakage currents and cutting off the power supply.
Protection in various conditions:
They are used in domestic installations, in places with an increased risk of electric shock (e.g., bathrooms, kitchens),
as well as in industrial facilities, construction sites, and farms.
Electric shock protection:
The main task of residual current devices is to protect people from electric shock, both in the case of direct contact (e.g., touching a live wire) and indirect contact (e.g., touching the housing of a damaged device).
Fire protection:
Residual current devices help prevent fires that can be caused by short circuits or damage to the electrical system by responding to leakage currents and cutting off the power supply.
Protection in various conditions:
They are used in domestic installations, in places with an increased risk of electric shock (e.g., bathrooms, kitchens),
as well as in industrial facilities, construction sites, and farms.
| Sensitivity | A, AC |
| Rated voltage AC Un | 230/400V AC |
| Rated current of the set InA | 25A/40A/63A |
| Rated frequency | 50-60 Hz |
| Rated differential current switching capacity | 500A |
| Rated differential current IΔn | 10mA 30mA 100mA 300mA 500mA |
| Rated differential current inactive IΔn | 0,5 |
| Rated conditional tripping differential current IΔc | 6000A |
| Number of poles | 2/4 |
| Electrical endurance | 4,000 switching operations |
| Short-circuit resistance Inc | 6000A |
| Degree of protection | IP20 |
| Tightening torque, terminals | 2,5 Nm |
| Wire gauge | 1-25 mm2 |
| Mounting method | to the rail TH35 (DIN) |
| Time of liberation | ≤ 0,1s |
| Range of working temperatures | -25ºC...+55ºC |
| Range of tripping differential current | 0,5(IΔn ~ IΔn) |
| Compliance with the standard | IEC/EN 61008-1 |
| Contact position indicator | O-OFF/I-ON |
| Clamps | ribbed for connecting the cable fork-type for connecting the busbar |
