ŁK16R OB1/OBP1 Cam switches in enclosure
Cam switches in enclosure ŁK 16R OB1/OBP1
ŁK#R-#\#
EAN:
| Rated insulation voltage Ui | 690 V |
| Rated withstand impulse voltage Uimp | 6 kV |
| Rated continuous current Iu=Ith | 16 A |
| Rated operational power Pe for AC-3 | 5 kW (230 V) 8 kW (400 V) |
| Rated operational power Pe for AC-4 | 5 kW (230 V) 7 kW (400 V) |
| Rated operational current Ie for AC-3 | 16 A (230 V) 16 A (400 V) |
| Rated operational current Ie for AC-4 | 16 A (230 V) 13 A (400 V) |
| Rated operational current Ie for DC-21 | 10 A (110 V) 3 A (220 V) |
| Short-time short-circuit withstand current Icw(1s) | 0.9 kA |
| Rated short-circuit making current Icm | 1.3 kA |
| Rated conventional short-circuit current | 13 kA |
| Rated current fuse link gG | 16 A |
| Tightening torque, terminals | 1.2 Nm |
| Mechanical endurance | 3.0 mln (transposition cycles) |
| Ambient temperature | -40 ... +70°C (work) -40 ... +70°C (storage) |
| Wire gauge | 1.5...4 mm² |
| Protection level: PN-EN 60529 to the panel | IP65 |
| Vibration test (acc. to IEC 60068-2-6) | 2...13, 2...100 Hz (frequency) ± 1 mm (acceleration amplitude) ±0.7 g (acceleration amplitude) |
| Shock test (acc. to IEC 60068-2-27) | 15 g (peak acceleration) 11 ms (impulse duration) |
| Damp heat cyclic test (acc. to IEC 60068-2-30) | 55°C (ambient temperature) 95% (relative humidity) |
| Salt mist cyclic test (acc. to IEC 60068-2-52) | severity 1 |
| Number of segments in the switch | 1 ... 2 |
| 1.825 | Disconnector 0-1 (1 - pole) |
| 1.828 | Disconnector 0-1 (2 - pole) |
| 2.8211 | Disconnector 0-1 (3 - pole) |
| 2.8210 | Disconnector 0-1 (4 - pole) |
| 2.4414 | Rotary disconnector 0-1 |
| 2.8445 | Control switch 0-1-2-3 |
| 1.834 | Disconnector 1-0-2 (1 - pole) |
| 2.8338 | Disconnector 1-0-2 (2 - pole) |
Assembly
-
OB1/OBP1
-
OB1C/OBP1C
-
OB1Z/OBP1Z
-
OB1ZC/OBP1ZC
Dimensions

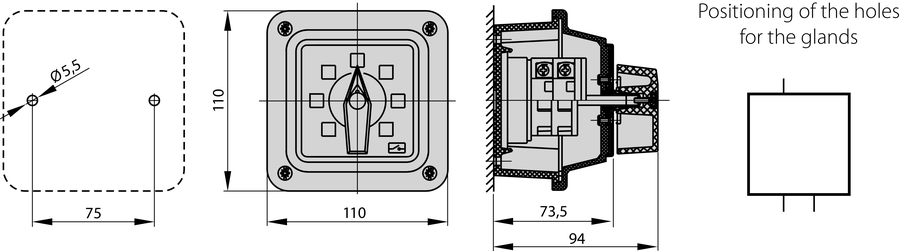

Surface mounting

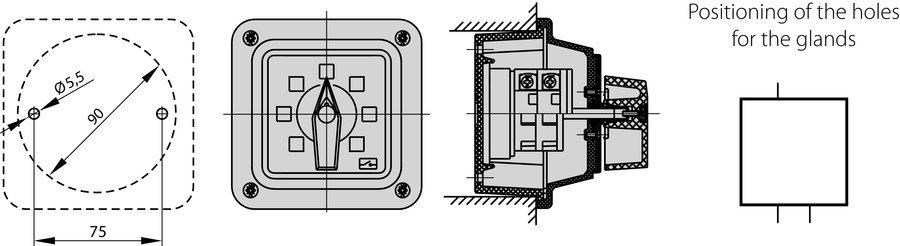

Flush mounting
