Cam switches, front mounted, ŁK16S

Cam switches, front mounted, ŁK16S

Cam switches, front mounted, ŁK16S

ŁK#S-#\#
Rated insulation voltage Ui 690 V
Rated withstand impulse voltage Uimp 4 kV
Rated continuous current Iu=Ith 20 A
Rated operational current Ie for AC-21A, AC-22A 16 A (230/400/500/690 V)
Rated operational power Pe for AC-23A 4 kW (230 V)
7 kW (400 V)
10 kW (500 V)
10 kW (690 V)
Rated operational power Pe for AC-3 3 kW (230 V)
5 kW (400 V)
7 kW (500 V)
8 kW (690 V)
Short-time short-circuit withstand current Icw(1s) 0.25 kA
Rated short-circuit making current Icm 0.34 kA
Rated current fuse link gG 16 A
Tightening torque, terminals max 0.8 Nm
Panel mounting 28
Ambient temperature -5 ... +40°C
Wire gauge 0.75...2.5 mm²
Protection level of the terminals IP20
Number of segments in the switch 1 ... 2
1.4213 Disconnector 0-1 (1 - pole)
1.428 Disconnector 0-1 (2 - pole)
2.423 Disconnector 0-1 (3 - pole)
2.4226 Disconnector 0-1 (4 - pole)

Dimensions

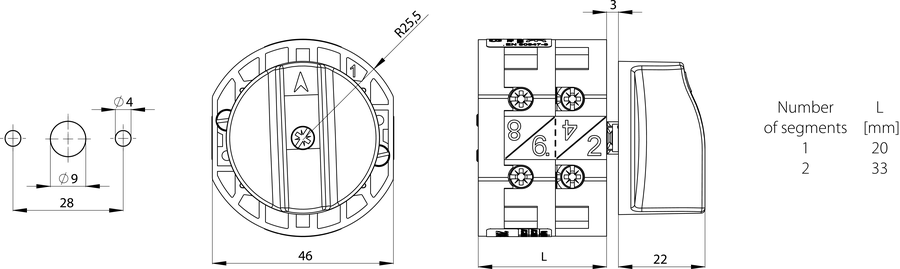

  • Cam switches, front mounted,  ŁK16S  - Dimensions
