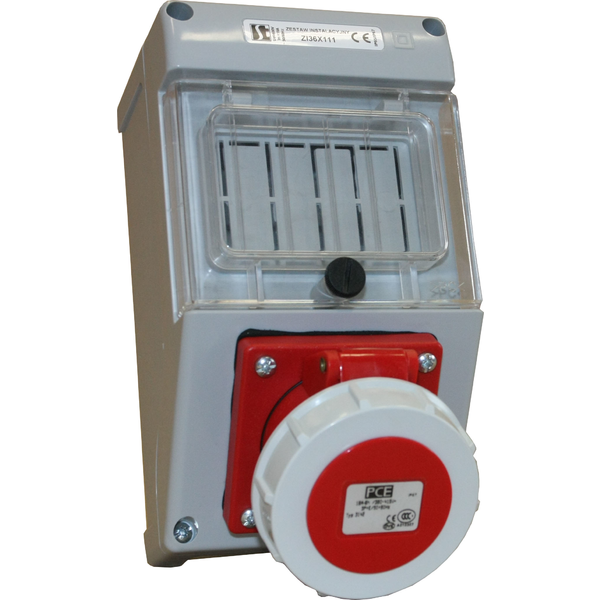

Switch socket ZI3 without protection

Switch socket ZI3 without protection

Switch sockets ZI

ZI#

Note:
1-phase side socket in installed on the right by default. It is possible to order the side socket on the left. In order to do that, please add "L", e.g. ZI33\X111L

The units have modern and ergonomic design. Each unit is fitted with a main socket 16 or 32 A (depending on configuration) and additional 1 or 2 side sockets (1-phase) fitted on the base plate which makes connecting the wires easier.
The complete device has protection level IP44 or IP65/IP67 (without side socket). The sockets are powered via a terminal strip. Switch sockets ZI are compliant with the standard: PN-EN 60439-3, PN-EN 60439-1
New devices are compliant with RoHS Directive 2002/95/EC which means that they do not contain the hazardous substances listed in the Directive.
Rated insulation voltage Ui 500 V
Prąd znamionowy zestawu InA max 32 A
Rated frequency 50-60 Hz
Rated switching voltage Ue 230/400 V
Rated withstand impulse voltage Uimp 6 kV
Wire gauge 2.5...6 mm²
Degree of protection IP44; IP65/IP67
Protection class II
Weight 0.8...1.2 kg
Gland type M25×1.5 (16 A)
M32×1.5 (32 A)
2P+PE 16A
2P+PE 16A side socket
3P+N+PE 16A
3P+N+PE 32A
3P+PE 16A
3P+PE 32A

Assembly

  • Switch socket ZI3 without protection - 32\X111

    32\X111

  • Switch socket ZI3 without protection - 36\X111

    36\X111

  • Switch socket ZI3 without protection - 32\X211

    32\X211

  • Switch socket ZI3 without protection - 36\X211

    36\X211

  • Switch socket ZI3 without protection - 32\X571

    32\X571

  • Switch socket ZI3 without protection - 36\X571

    36\X571

  • Switch socket ZI3 without protection - 33\X111

    33\X111

  • Switch socket ZI3 without protection - 33\X211

    33\X211

  • Switch socket ZI3 without protection - 33\X581

    33\X581

  • Switch socket ZI3 without protection - 34\X111

    34\X111

  • Switch socket ZI3 without protection - 34\X211

    34\X211

  • Switch socket ZI3 without protection - 34\X511

    34\X511

  • Switch socket ZI3 without protection - 32\X341

    32\X341

  • Switch socket ZI3 without protection - 36\X341

    36\X341

  • Switch socket ZI3 without protection - 32\X441

    32\X441

  • Switch socket ZI3 without protection - 36\X441

    36\X441

  • Switch socket ZI3 without protection - 35\X341

    35\X341

  • Switch socket ZI3 without protection - 35\X342

    35\X342

  • Switch socket ZI3 without protection - 35\X441

    35\X441

  • Switch socket ZI3 without protection - 35\X442

    35\X442

3D model

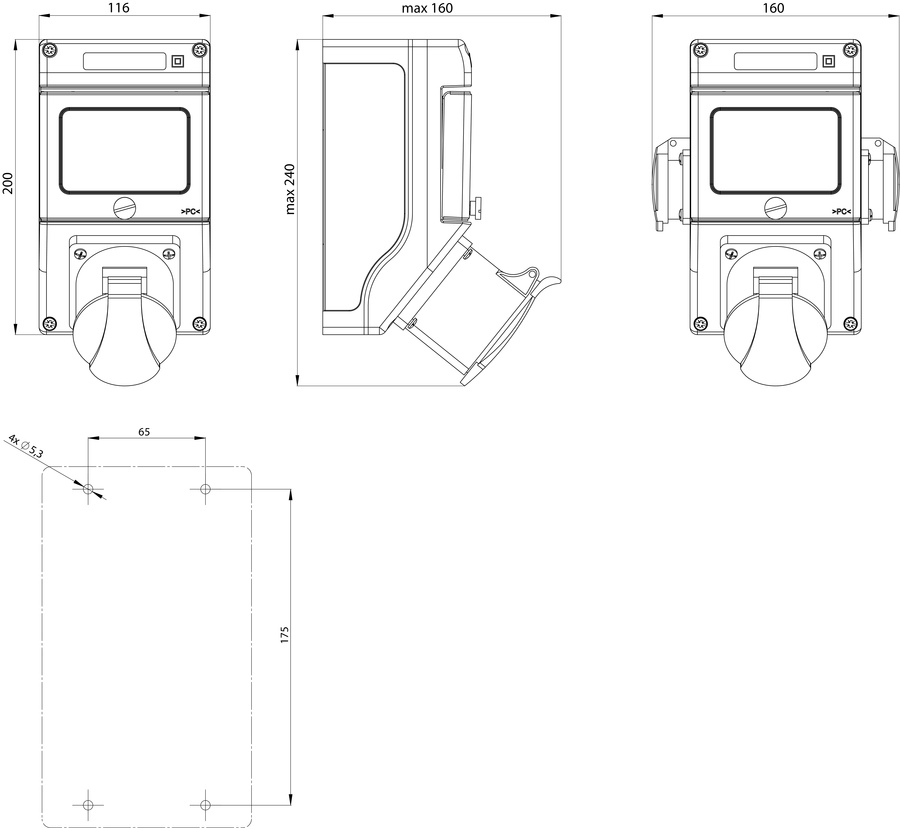

Dimensions

  • Switch socket ZI3 without protection - Dimensions
