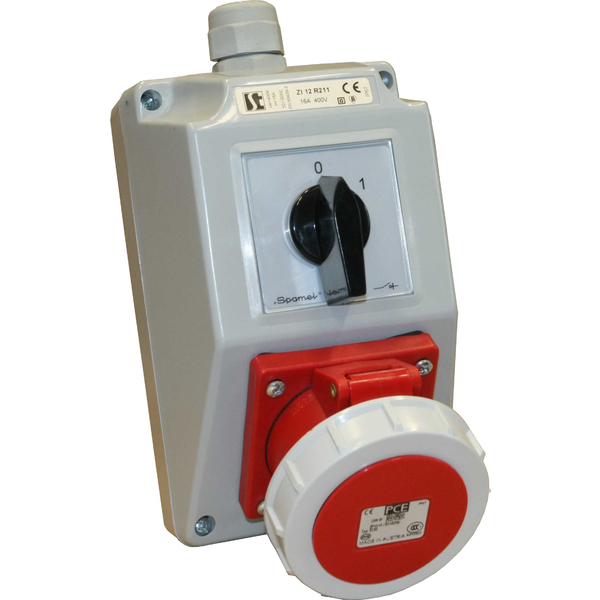

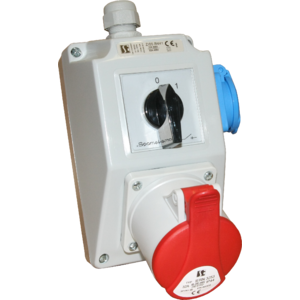

Switch socket ZI with disconnector 0-I

Switch socket ZI with disconnector 0-I

Switch sockets ZI

ZI#

Protection level IP67 in assemblies: ZI12\R111, ZI12\R211, ZI12\R571, ZI12\R341, ZI12\R441.
In assemblies: ZI05R\341, ZI05\R342, ZI05\R441, ZI05\R442 the side socket is protected with a fuse-link WTA 10A/250V 1500 A AC.
Assemblies ZI01 are fitted with a rubber gland, other assemblies: metric gland

Switch sockets ZI with disconnectors 0-I in a housing with protection level IP44 or IP67 are fitted with 1, 2, or 3 fixed sockets. There is a variety of configurations regarding the type and current rating of sockets. Switch sockets ZI with main socket 16A are fitted with a cam switch ŁK16R in function of a disconnector 0-I. Units with main socket 32A are fitted with a cam switch ŁK32R. Switch sockets ZI are compliant with the standard: PN-EN 60439-3, PN-EN 60439-1.
Rated insulation voltage Ui 500 V
Prąd znamionowy zestawu InA max 32 A
Rated frequency 50-60 Hz
Rated switching voltage Ue 230/400 V
Rated withstand impulse voltage Uimp 6 kV
Wire gauge 2.5...4 mm²
Degree of protection IP44; IP67
Protection class II
Gland type M25×1.5
2P+PE 16A
2P+PE 16A side socket
2P+PE 16A side socket fuse link protection WTA 10A/250V
3P+N+PE 16A
3P+N+PE 32A
3P+PE 16A
3P+PE 32A
Switch 0-I

Assembly

  • Switch socket ZI with disconnector 0-I - 02\R111

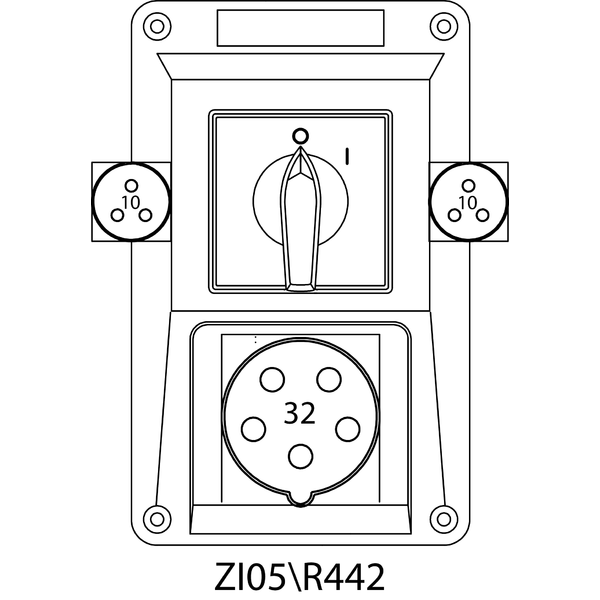

    02\R111

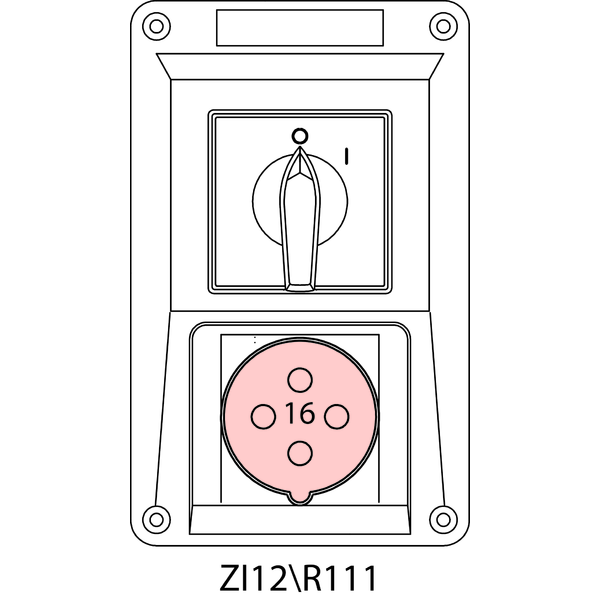

  • Switch socket ZI with disconnector 0-I - 12\R111

    12\R111

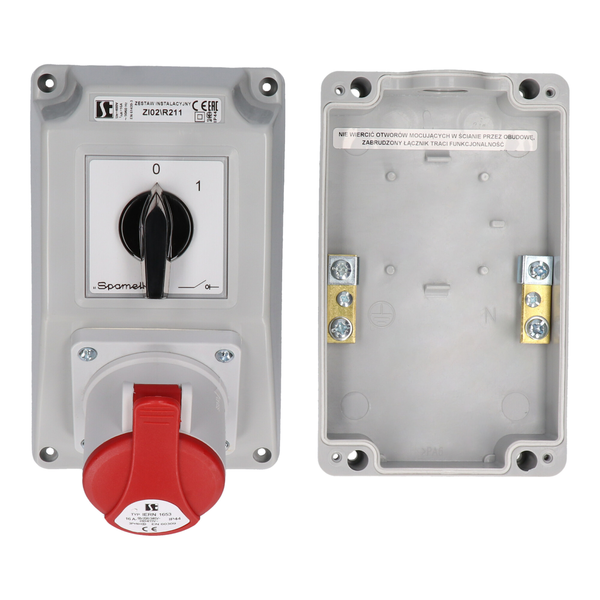

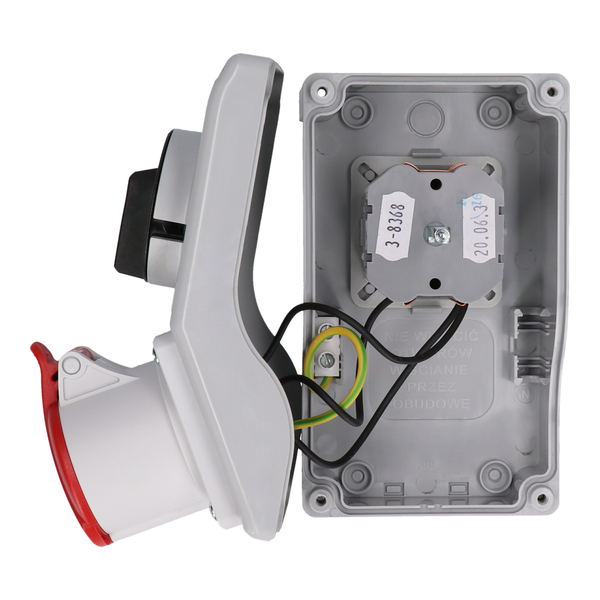

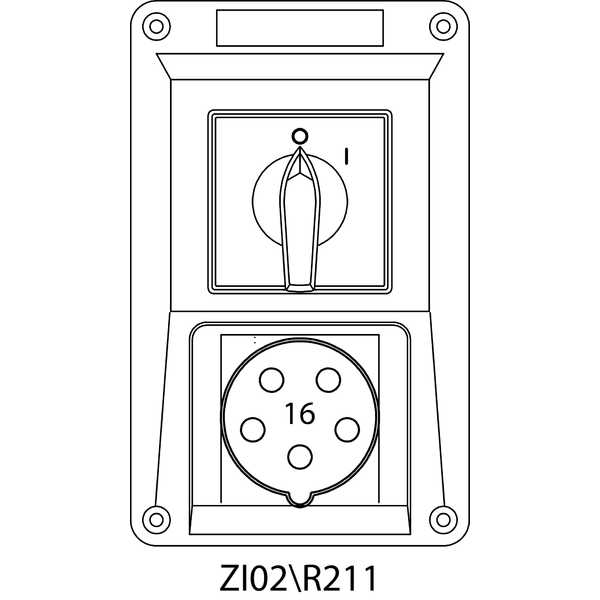

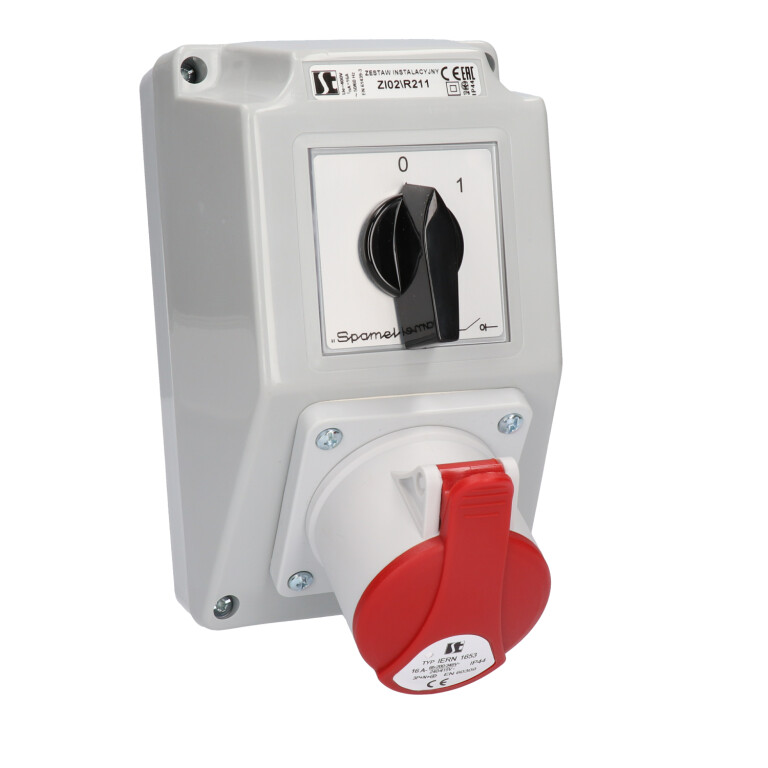

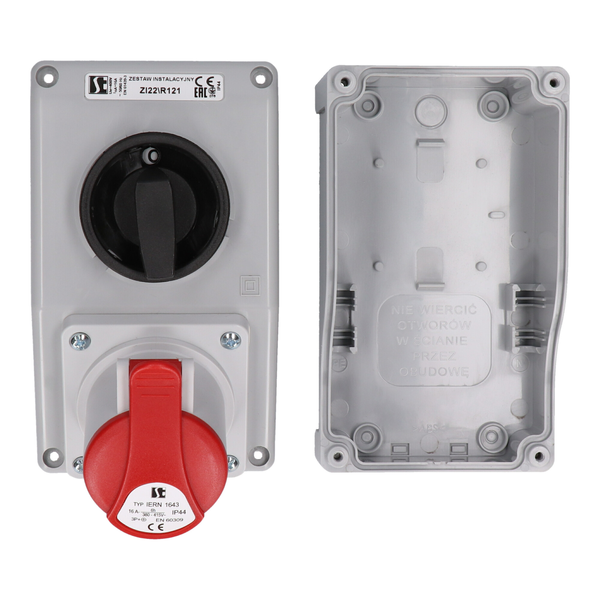

  • Switch socket ZI with disconnector 0-I - 02\R211

    02\R211

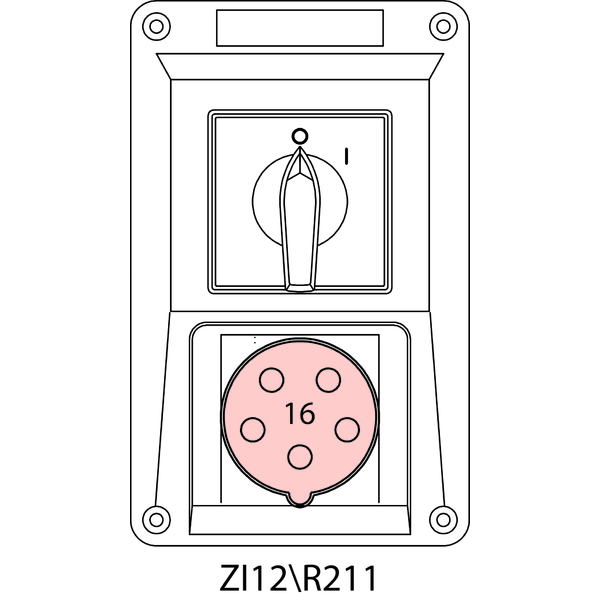

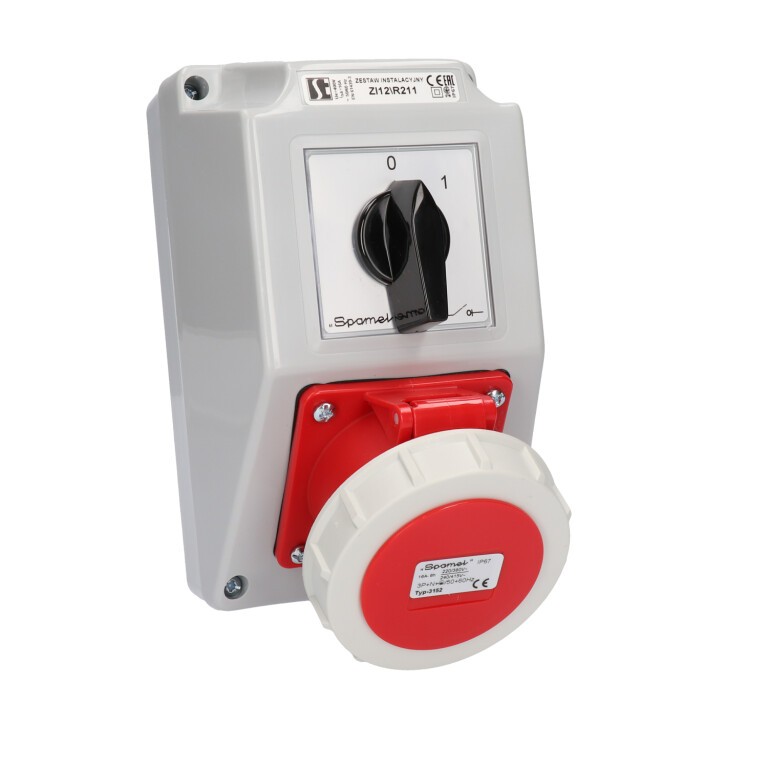

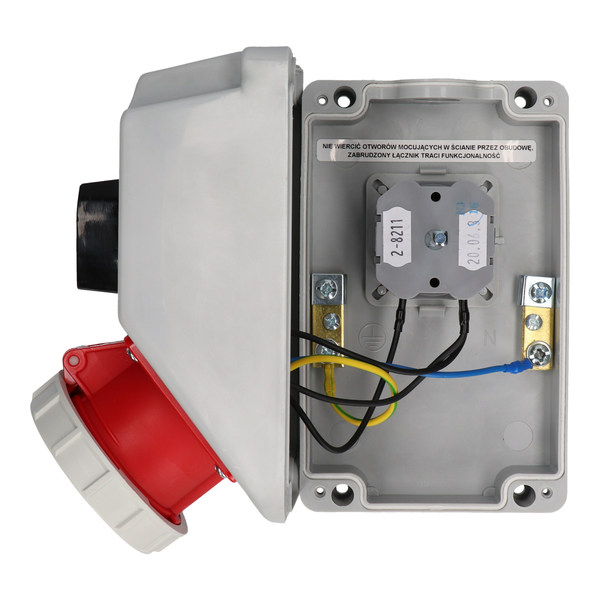

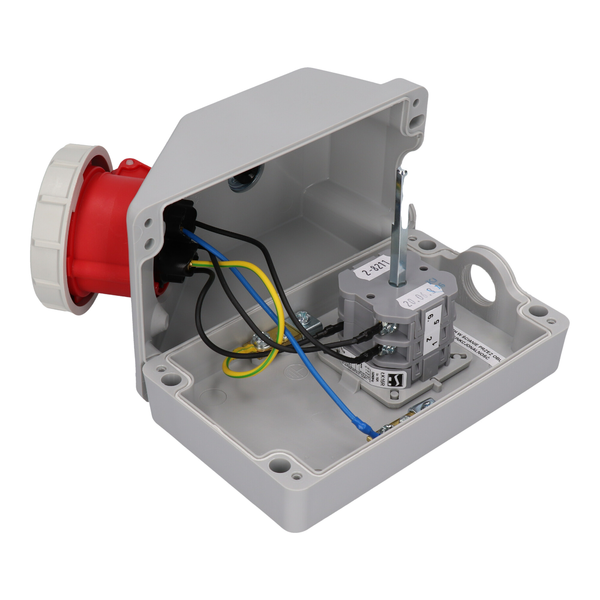

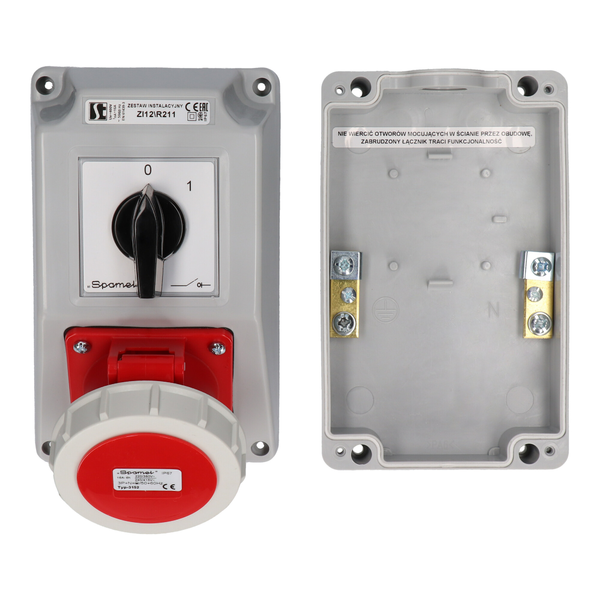

  • Switch socket ZI with disconnector 0-I - 12\R211

    12\R211

  • Switch socket ZI with disconnector 0-I - 02\R571

    02\R571

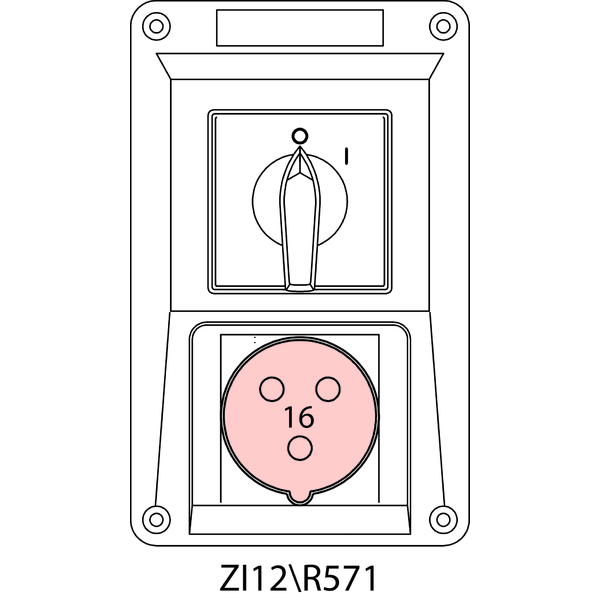

  • Switch socket ZI with disconnector 0-I - 12\R571

    12\R571

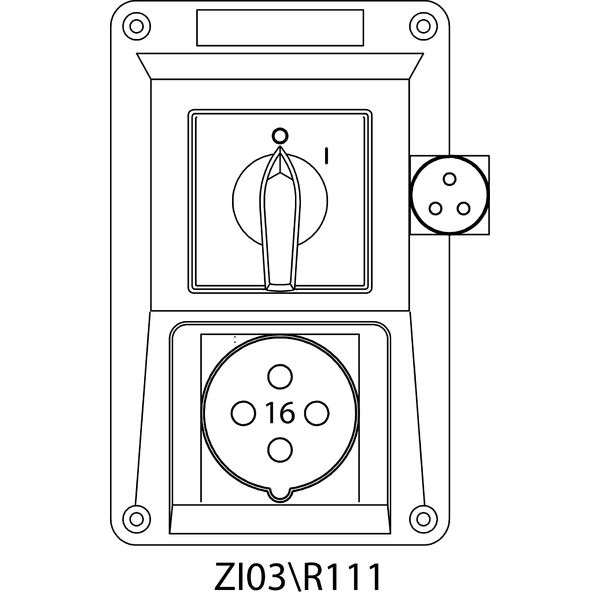

  • Switch socket ZI with disconnector 0-I - 03\R111

    03\R111

  • Switch socket ZI with disconnector 0-I - 03\R211

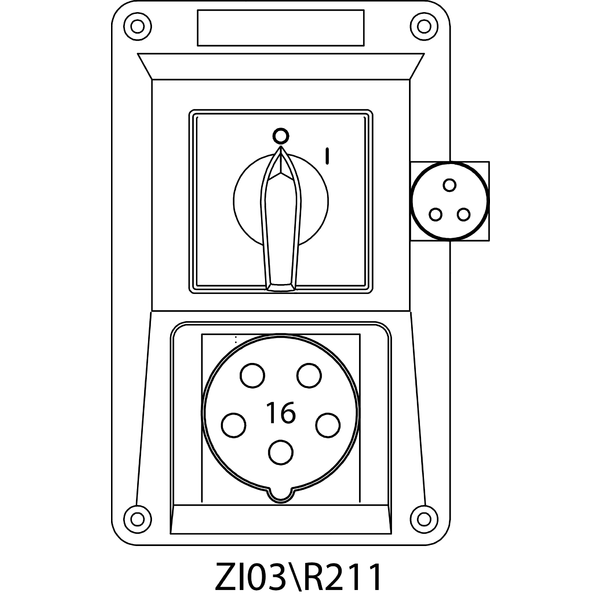

    03\R211

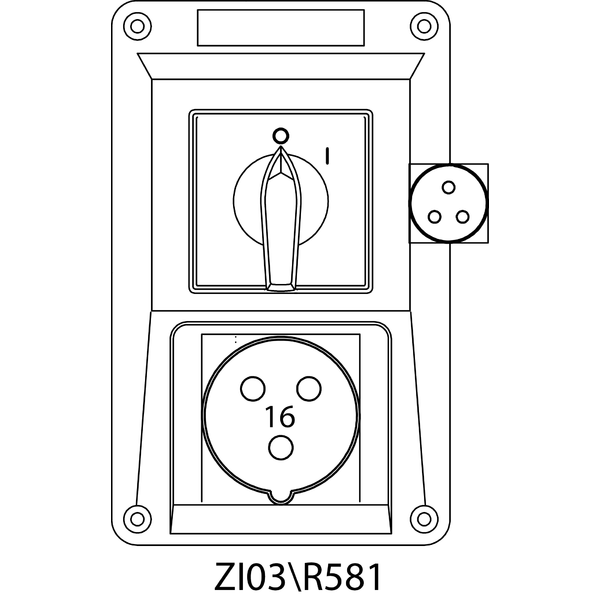

  • Switch socket ZI with disconnector 0-I - 03\R581

    03\R581

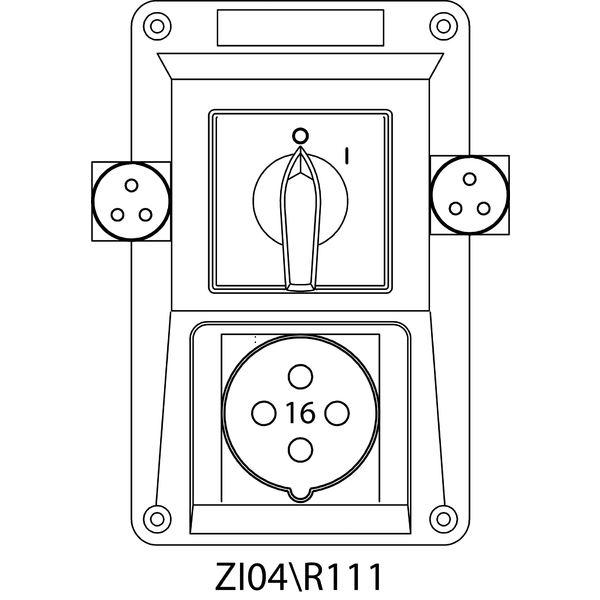

  • Switch socket ZI with disconnector 0-I - 04\R111

    04\R111

  • Switch socket ZI with disconnector 0-I - 04\R211

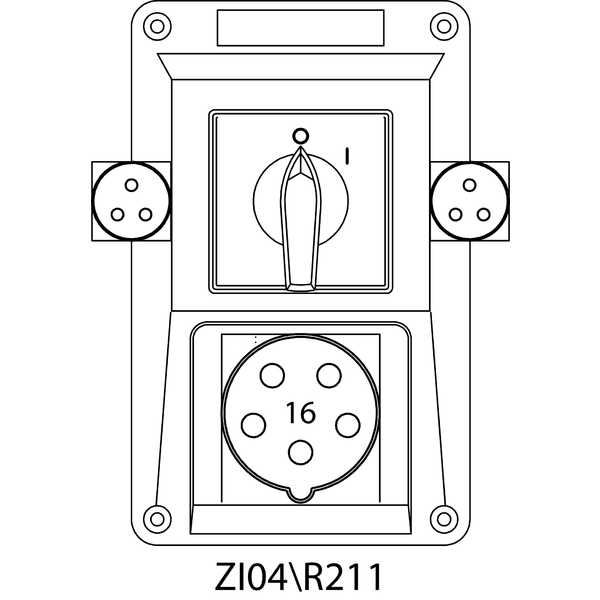

    04\R211

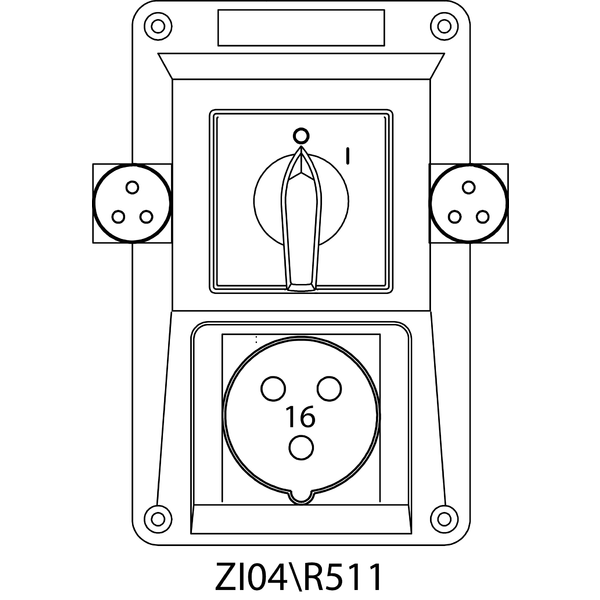

  • Switch socket ZI with disconnector 0-I - 04\R511

    04\R511

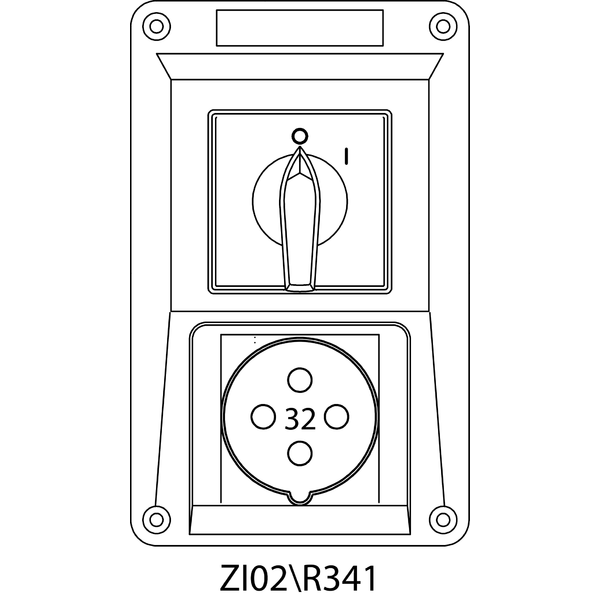

  • Switch socket ZI with disconnector 0-I - 02\R341

    02\R341

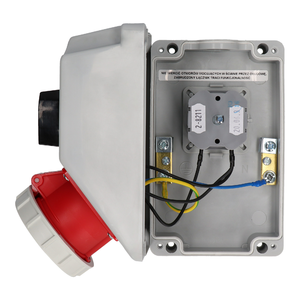

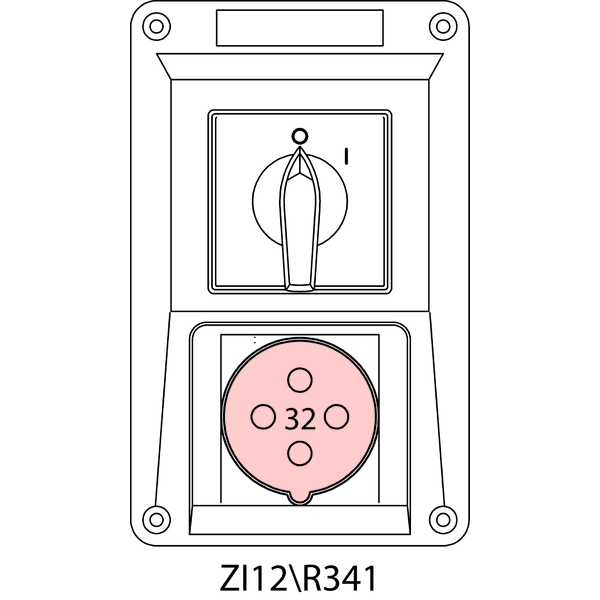

  • Switch socket ZI with disconnector 0-I - 12\R341

    12\R341

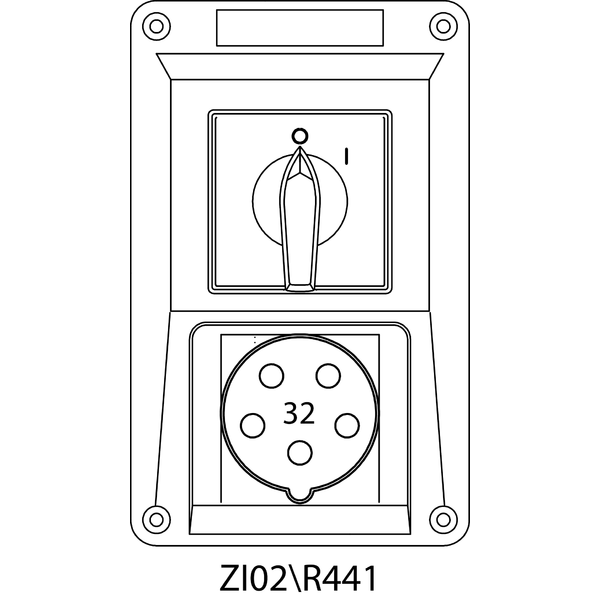

  • Switch socket ZI with disconnector 0-I - 02\R441

    02\R441

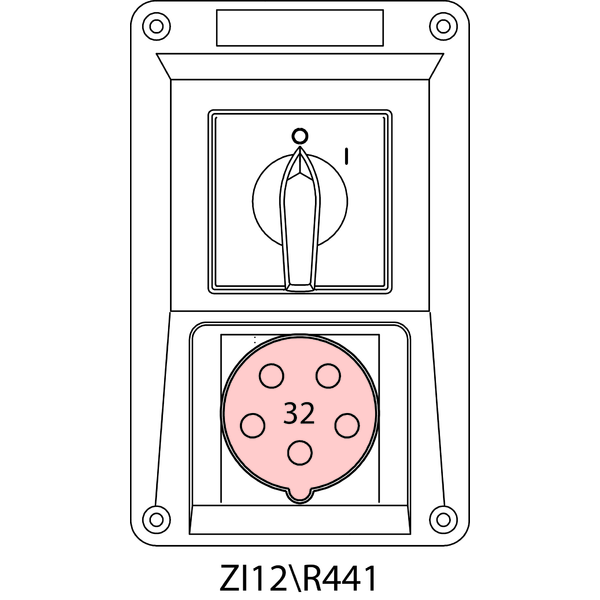

  • Switch socket ZI with disconnector 0-I - 12\R441

    12\R441

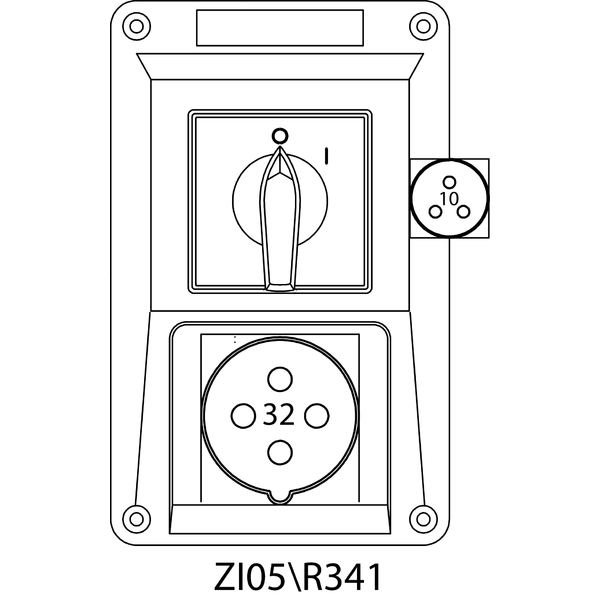

  • Switch socket ZI with disconnector 0-I - 05\R341

    05\R341

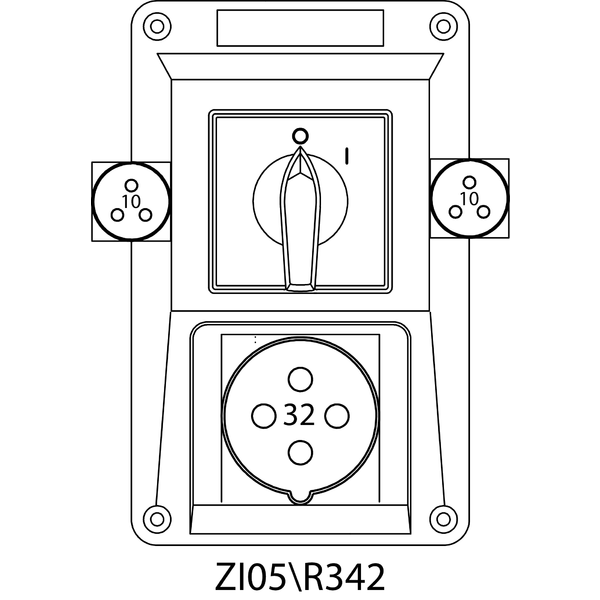

  • Switch socket ZI with disconnector 0-I - 05\R342

    05\R342

  • Switch socket ZI with disconnector 0-I - 05\R441

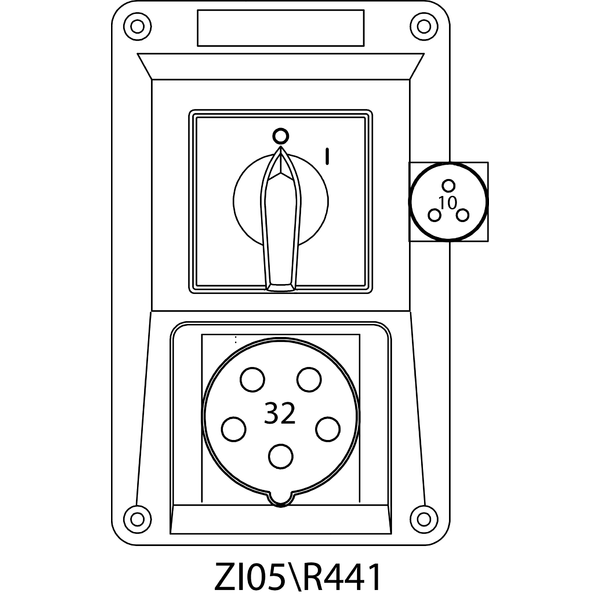

    05\R441

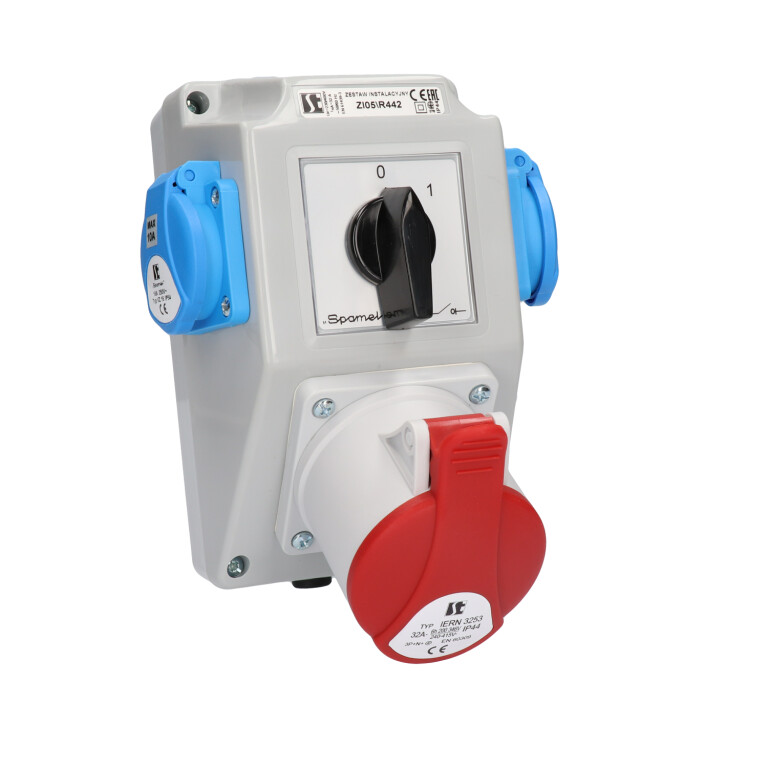

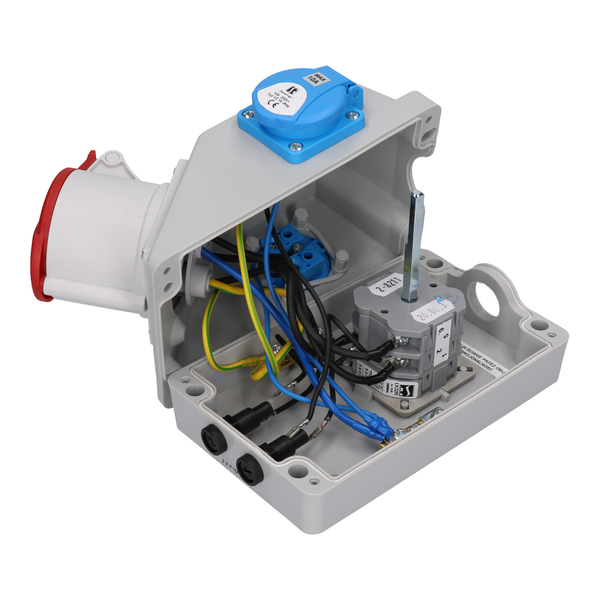

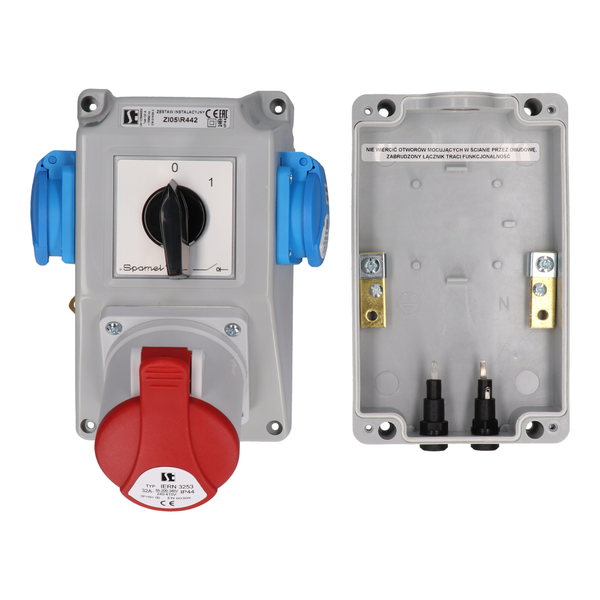

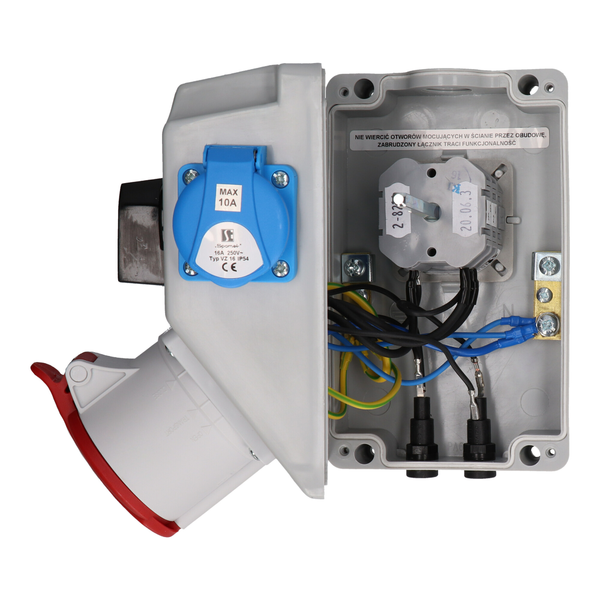

  • Switch socket ZI with disconnector 0-I - 05\R442

    05\R442

3D model

Dimensions

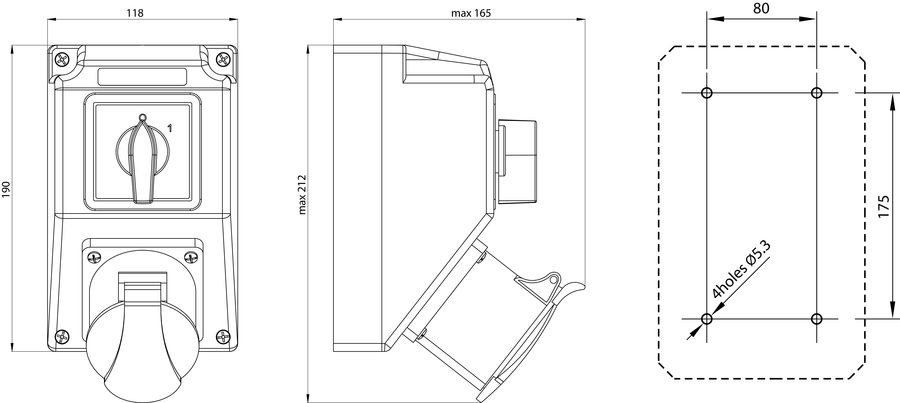

  • Switch socket ZI with disconnector 0-I - Dimensions
