Cam switches, base-rail mounted, SK10/16/20 BS

SK#-#\#
Rated insulation voltage Ue 690 V
Rated withstand impulse voltage Uimp 4 kV
Rated continuous current Iu=Ith 16 A
Rated operational current Ie for AC-21A, AC-22A 10 A (230/400/500/690 V)
Rated operational power Pe for AC-23A 2 kW (230 V)
4 kW (400 V)
5 kW (500 V)
6 kW (690 V)
Rated operational power Pe for AC-3 1.5 kW (230 V)
3 kW (400 V)
3.5 kW (500 V)
5 kW (690 V)
Rated operational current Ie for DC-21A 10 A (24 V)
6 A (110 V)
5 A (220 V)
Short-time short-circuit withstand current Icw(1s) 0.25 kA
Rated short-circuit making current Icm 0.34 kA
Rated conventional short-circuit current 10 kA
Rated current fuse link gG 10 A
Wire gauge 1...4 mm²
Tightening torque, terminals 0.5 Nm
Panel mounting 31/36
Mechanical endurance 3.0 mln (transposition cycles)
Ambient temperature -40 ... +70°C (work)
-40 ... +70°C (storage)
Protection level: PN-EN 60529 to the panel IP65
Protection level of OB enclosure IP65
Vibration test (acc. to IEC 60068-2-6) 2...13, 2...100 Hz (frequency)
± 1 mm (acceleration amplitude)
±0.7 g (acceleration amplitude)
Shock test (acc. to IEC 60068-2-27) 15 g (peak acceleration)
11 ms (impulse duration)
Damp heat cyclic test (acc. to IEC 60068-2-30) 55°C (ambient temperature)
95% (relative humidity)
Salt mist cyclic test (acc. to IEC 60068-2-52) severity 1
Number of segments in the switch 1 ... 10
1.825 Disconnector 0-1 (1 - pole)
1.828 Disconnector 0-1 (2 - pole)
2.8211 Disconnector 0-1 (3 - pole)
2.8210 Disconnector 0-1 (4 - pole)
3.8220 Disconnector 0-1 (5 - pole)
3.8210 Disconnector 0-1 (6 - pole)
4.8240 Disconnector 0-1 (7 - pole)
4.824 Disconnector 0-1 (8 - pole)
5.8220 Disconnector 0-1 (9 - pole)
5.822 Disconnector 0-1 (10 - pole)
6.8210 Disconnector 0-1 (11 - pole)
6.821 Disconnector 0-1 (12 - pole)
7.8220 Disconnector 0-1 (13 - pole)
7.822 Disconnector 0-1 (14 - pole)
8.8270 Disconnector 0-1 (15 - pole)
8.827 Disconnector 0-1 (16 - pole)
9.8210 Disconnector 0-1 (17 - pole)
9.821 Disconnector 0-1 (18 - pole)
10.8210 Disconnector 0-1 (19 - pole)
10.821 Disconnector 0-1 (20 - pole)
3.8368 Reversing switch L-0-P
3.83139 2-speed switch
2 separate windings
4.8390 2-speed Dahlander switch
7.8538 2-speed reversing
Dahlander switch
4.831 3-phase starting switch 0-Y-∆
5.8538 3-phase starting
reversing switch
6.4470 3-speed Dahlander switch
single winding for low speed
6.4480 3-speed Dahlander switch
single winding for medium speed
6.4490 3-speed Dahlander switch
single winding for high speed
4.883 Voltmeter selector switch
2.4414 Rotary disconnector 0-1
2.8445 Control switch 0-1-2-3
1.834 Disconnector 1-0-2 (1 - pole)
2.8338 Disconnector 1-0-2 (2 - pole)
3.8380 Disconnector 1-0-2 (3 - pole)
4.8396 Disconnector 1-0-2 (4 - pole)
5.8380 Disconnector 1-0-2 (5 - pole)
6.8380 Disconnector 1-0-2 (6 - pole)
7.8380 Disconnector 1-0-2 (7 - pole)
8.8380 Disconnector 1-0-2 (8 - pole)
9.8380 Disconnector 1-0-2 (9 - pole)
10.8380 Disconnector 1-0-2 (10 - pole)

Assembly

  • SK10 BS Cam switches, base-rail mounted - BS23

    BS23

  • SK10 BS Cam switches, base-rail mounted - BS24

    BS24

  • SK10 BS Cam switches, base-rail mounted - BS27

    BS27

  • SK10 BS Cam switches, base-rail mounted - BS28

    BS28

3D model

Dimensions

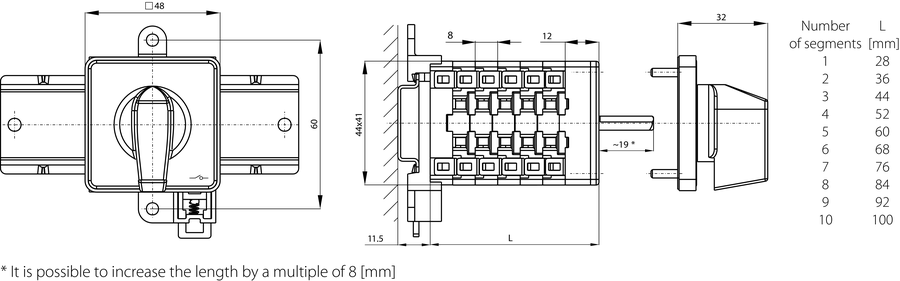

  • SK10 BS Cam switches, base-rail mounted - Dimensions

    Snap-on mounting on TS35 rail

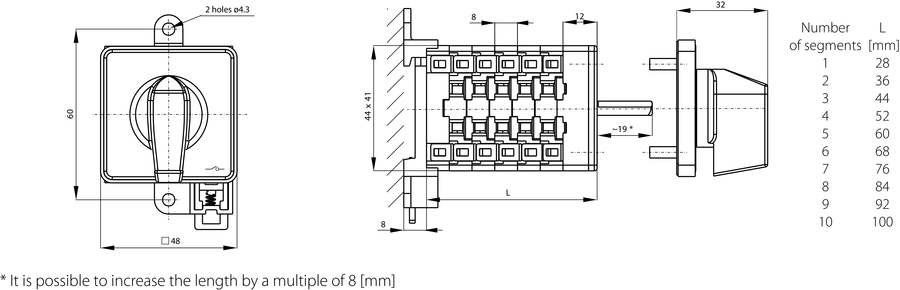

  • SK10 BS Cam switches, base-rail mounted - Dimensions

    Fixing to the sub-desk base
