Cam switches in enclosure with a lamp SK10/16/20 OB12 L

SK#-#\#
Rated insulation voltage Ue 690 V
Rated withstand impulse voltage Uimp 4 kV
Rated continuous current Iu=Ith 16 A
Rated operational current Ie for AC-21A, AC-22A 10 A (230/400/500/690 V)
Rated operational power Pe for AC-23A 2 kW (230 V)
4 kW (400 V)
5 kW (500 V)
6 kW (690 V)
Rated operational power Pe for AC-3 1.5 kW (230 V)
3 kW (400 V)
3.5 kW (500 V)
5 kW (690 V)
Rated operational current Ie for DC-21A 10 A (24 V)
6 A (110 V)
5 A (220 V)
Short-time short-circuit withstand current Icw(1s) 0.25 kA
Rated short-circuit making current Icm 0.34 kA
Rated conventional short-circuit current 10 kA
Rated current fuse link gG 10 A
Wire gauge 1...4 mm²
Tightening torque, terminals 0.5 Nm
Panel mounting 31/36
Mechanical endurance 3.0 mln (transposition cycles)
Ambient temperature -40 ... +70°C (work)
-40 ... +70°C (storage)
Protection level: PN-EN 60529 to the panel IP65
Protection level of OB enclosure IP65
Vibration test (acc. to IEC 60068-2-6) 2...13, 2...100 Hz (frequency)
± 1 mm (acceleration amplitude)
±0.7 g (acceleration amplitude)
Shock test (acc. to IEC 60068-2-27) 15 g (peak acceleration)
11 ms (impulse duration)
Damp heat cyclic test (acc. to IEC 60068-2-30) 55°C (ambient temperature)
95% (relative humidity)
Salt mist cyclic test (acc. to IEC 60068-2-52) severity 1
Number of segments in the switch 1 ... 6
1.825 Disconnector 0-1 (1 - pole)
1.828 Disconnector 0-1 (2 - pole)
2.8211 Disconnector 0-1 (3 - pole)
2.8210 Disconnector 0-1 (4 - pole)
3.8220 Disconnector 0-1 (5 - pole)
3.8210 Disconnector 0-1 (6 - pole)
4.8240 Disconnector 0-1 (7 - pole)
4.824 Disconnector 0-1 (8 - pole)
5.8220 Disconnector 0-1 (9 - pole)
5.822 Disconnector 0-1 (10 - pole)
6.8210 Disconnector 0-1 (11 - pole)
6.821 Disconnector 0-1 (12 - pole)

Assembly

3D model

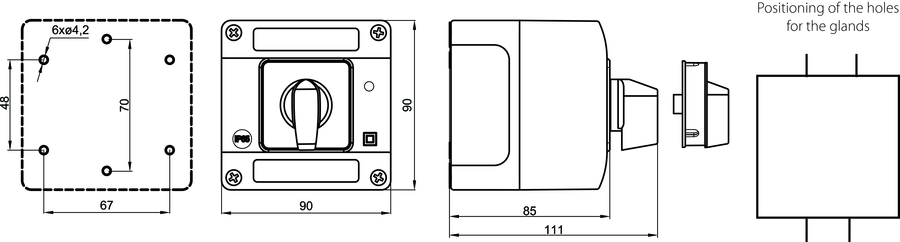

Dimensions

  • SK10 OB12L Cam switches in enclosure with a lamp - Dimensions
